Keysight Technologies MSOX2024A Bench Mixed Signal Oscilloscope, 200MHz, 4, 8 Channels, Осциллограф

Keysight InfiniiVision 2000 X-Series

Keysight InfiniiVision X-Series mixed signal and digital storage oscilloscopes are affordable instruments incorporating advanced technologies which deliver exceptional capabilities. They offer the fastest waveform update rates in their class, for superior viewing of signal detail and capture of infrequent events. Engineers and technicians use oscilloscopes as their primary tools to test and debug designs in the computing, communications, semiconductor, aerospace/defence, automotive and wireless industries. Keysight InfiniiVision X-Series scopes are at work throughout these industries and are credited with being a revolutionary force in engineering education.

Update rates up to 50,000 waveforms/sec
Memory depth 100k points
Input Z 1-MΩ only (no 10:1 auto-detect)
Triggering: Edge; Pulse Width; Pattern; Video
High resolution display intensity gradation

Keysight Technologies Mixed Signal Oscilloscope

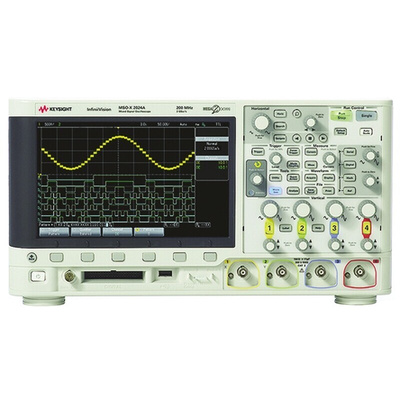

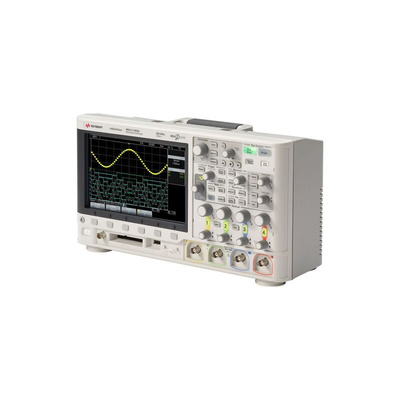

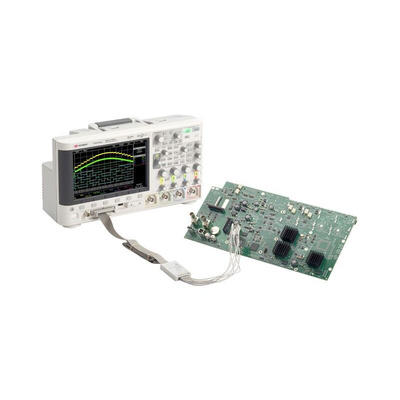

The Keysight Technologies InfiniiVision 2000 X-Series 200MHz mixed-signal oscilloscope offers a large 8.5in WVGA display. This product has 4 analogue and 8 digital channels. It has the fastest waveform update rates in their class for superior viewing of signal detail and capture of infrequent events. This oscilloscope is used by engineers and technicians as their primary tools to test and debug designs in the computing, communications, semiconductor, aerospace/defence, automotive and wireless industries.

Keysight InfiniiVision Series:
Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope
logic analyser
function generator
protocol analyser. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect the investment.

Features and Benefits

Waveform update rate is 200,000wfms/s
Input capacitance is 8pF
Sampling rate is 1GSa/s per channel and 2GSa/s per half-channel
Operating temperature ranges between 0°C and 55°C
Input impedance is 1Mohm
Max memory depth of 1Mpts
5-in-1 instrument integration

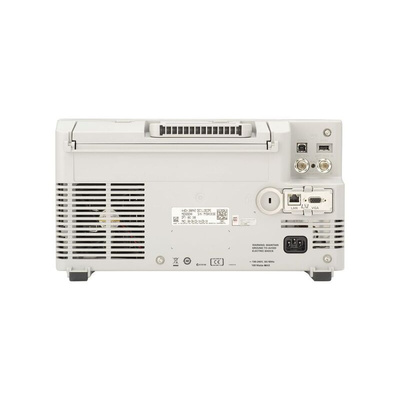

USB host and device ports for connectivity, memory devices and printing
Optional LAN and VGA interface

Applications

Embedded design
Power design
EMI troubleshooting
Education
Manufacturing test/troubleshooting

Certifications

s EMC Directive (2004/108/EC) meets or exceeds IEC 61326-1:2005/EN
61326-1:2006 Group 1 Class A requirement
CISPR 11/EN 55011
IEC 61000-4-2/EN 61000-4-2
IEC 61000-4-3/EN 61000-4-3
IEC 61000-4-4/EN 61000-4-4
IEC 61000-4-5/EN 61000-4-5
IEC 61000-4-6/EN 61000-4-6
IEC 61000-4-11/EN 61000-4-11
Canada: ICES-001:2004
Australia/New Zealand: AS/NZS

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.
