Keysight Technologies Waveform Generator, 20MHz Bandwidth, For Use With InfiniiVision 3000 X Series - DSOX3WAVEGEN

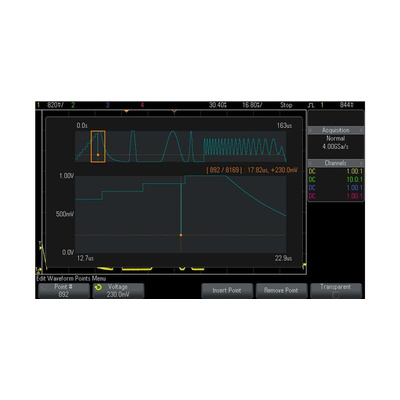

Beef up your oscilloscope with this 20MHz waveform generator upgrade from Keysight Technologies. It makes creating custom waveforms a breeze as you can adjust the frequency, amplitude and offset. As it's a software upgrade, you can download and install this product in a jiffy. For versatility, you can pair this software with two-channel and four-channel oscilloscopes from the InfiniiVision 3000 X series to speed up your testing and design workflow.

Features & Benefits

• Add noise and glitches to troubleshoot your design
• Save and recall functions for ease of data storage and retrieval

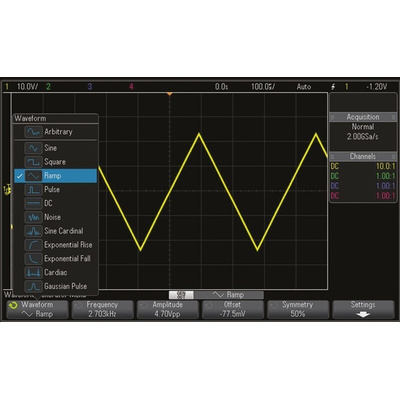

• Supports ramp, pulse, DC, noise, sine and square waveforms for versatility

Applications

• Electrical device design
• Education and research
• Telecommunications

How do I connect my oscilloscope to a computer?

Oscilloscopes in the InfiniiVision 3000 X series have a USB port and LAN connectivity for ease of transferring data to a computer.

How do I restore the waveform generator to its default settings?

To reset your waveform generator, first go to its menu, then press the settings softkey. This will include a Default WaveGen option. Pressing this will return your unit to its factory settings.

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.
