DSOX2WAVEGEN, Keysight Technologies Waveform Generator for Use with InfiniiVision 2000 X, Программное обеспечение

Keysight Technologies Waveform Generator, For Use With InfiniiVision 2000 X Series, 20MHz Bandwidth - InfiniiVision Series - DSOX2WAVEGEN

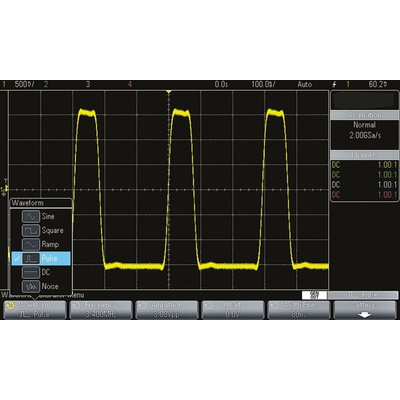

Wave goodbye to testing woes with this waveform generator from Keysight Technologies. It's a software module for your InfiniiVision 2000 X series oscilloscope that makes it a breeze to upgrade your system. The waveform generator is a cinch to use. Once you've activated the license, it's integrated into your oscilloscope for quick access. You can use this software to generate sine waves, pulses, square waves, ramps, noise and more, making it a versatile piece of kit.

• Compatible with 2-channel and 4-channel models for versatility
• Setups and waveforms can be saved to the oscilloscope's internal memory for easy access
• Support for storage of waveform data on a USB device in ASCII, CSV and BIN formats
• User-definable frequencies, amplitudes and pulse widths for enhanced testing capabilities

Applications

• Consumer electronics testing
• Educational settings
• Laboratory research

Where is the waveform generator's output routed to?

For convenient use, the waveform generator's output is sent to a BNC port below the display on the front panel of your oscilloscope.

Keysight InfiniiVision Series

Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.
