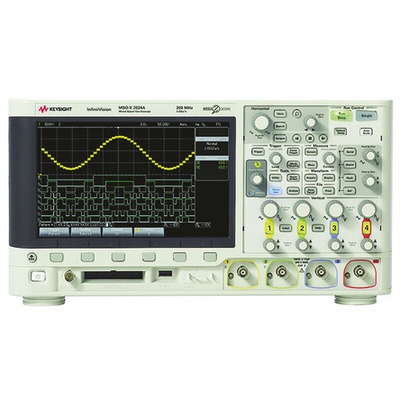

Keysight InfiniiVision 2000 X-Series
Keysight InfiniiVision X-Series mixed signal and digital storage oscilloscopes are affordable instruments incorporating advanced technologies which deliver exceptional capabilities. They offer the fastest waveform update rates in their class, for superior viewing of signal detail and capture of infrequent events. Engineers and technicians use oscilloscopes as their primary tools to test and debug designs in the computing, communications, semiconductor, aerospace/defence, automotive and wireless industries. Keysight InfiniiVision X-Series scopes are at work throughout these industries and are credited with being a revolutionary force in engineering education.
Update rates up to 50,000 waveforms/sec
Memory depth 100k points
Input Z 1-MΩ only (no 10:1 auto-detect)
Triggering: Edge; Pulse Width; Pattern; Video
High resolution display intensity gradation
Keysight Technologies Oscilloscope
The Keysight Technologies 2000 X series 200MHz oscilloscope enables 200,000 waveforms per second update rate with Keysight’s 4th generation mega-zoom technology. It has 4 analogue channels. It also has the fastest waveform update rates in their class, for superior viewing of signal detail and capture of infrequent events. It is used by engineers and technicians use oscilloscopes as their primary tools to test and debug designs in the computing, communications, semiconductor and aerospace/defence, automotive and wireless industries.
Features and Benefits
Sampling rate is 1GSa/s per channel and is 2GSa/s per half-channel
Input impedance is 1Mohm
Maximum memory depth is 1Mpts
Function Generator is 20MHz
Colour display of 8.5in WVGA
USB host and device ports for connectivity, memory devices and printing
Optional LAN and VGA interface
Optional GPIB interface
5-year warranty
Waveform math and FFT
Applications
Audio and video recording equipment
Designing
Research & Development
Testing in manufacturing
Testing of signals voltage in radio broadcasting equipment
Testing signal voltage in-circuit debugging
Certifications
CISPR 11/EN 55011
IEC 61000/EN 61000 compatible
Canada: ICES-001:2004
Australia/New Zealand: AS/NZS
Keysight InfiniiVision Series
Keysight InfiniiVision 2000 & 3000 X-Series offers the power of 4 instruments in 1: oscilloscope; logic analyzer; function generator; protocol analyzer. The models are fully upgradable (bandwidth, MSO, WaveGen, memory, measurement applications) to meet future requirements and protect investment.
Техническая спецификацияInfiniiVision 2000 X-Series Oscilloscopes Users Guide
InfiniiVision 2000 X-Series Oscilloscopes Data Sheet
