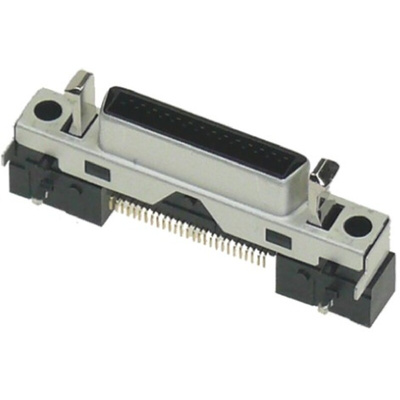

DH60A-27P, Hirose DH Series Right Angle Surface Mount PCB Socket, 27-Contact, 2-Row, 24.2mm Pitch, Solder Termination

DH Series Receptacle connector, One Touch Lock Type

These Hirose DH Series connectors are an impedance controlled interface connector for high speed transmission, these interface connectors are suitable for one touch lock type cover cases and are compact in design with 1mm contact mating pitch and have excellent EMI shielding.

Features and Benefits

• Current rating 0.5A
• Voltage rating 125 Vac
• Operating temperature range -25 to +85°C
• 1000 operating cycles

Hirose DH Series Shielded High Speed Interface

DH Series is an impedance controlled interface connector for high speed transmission. It has a 1mm contact mating pitch. This, coupled with a 0.5mm mounting pitch, makes for a more compact, lower-profile, higher-density alternative to conventional half-pitch interface connectors. Depending on the cable, the DH Series caters for speeds up to 2.5Gb/s. Applications include enterprise networking, industrial, telecom and datacom.

• 50% reduction in mating face area because of smaller pitch sizes
• Robust, D-shaped interface design resists wrenching forces
• Receptacle's through-hole style metal fittings facilitate retention to PCB
• Unique contact arrangement for IDC termination
• Excellent shielding for EMI prevention

DH Series

Datasheet
