DH-37-CT2B, Hirose, DH Connector Housing, 1mm Pitch, 37 Way, Корпус разъема

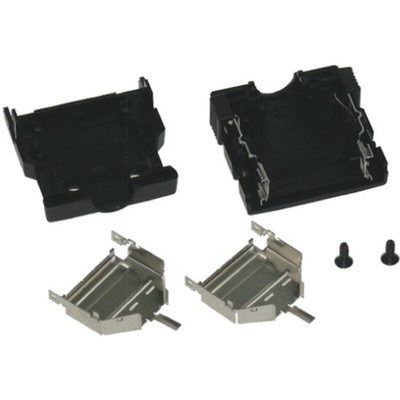

DH Series Cover Case, Plastic Button Type

A range of DH series screw lock connector cover housings, for use when making interface connectors with receptacles that utilise the one touch plastic button mechanism.

Hirose DH Series Shielded High Speed Interface

DH Series is an impedance controlled interface connector for high speed transmission. It has a 1mm contact mating pitch. This, coupled with a 0.5mm mounting pitch, makes for a more compact, lower-profile, higher-density alternative to conventional half-pitch interface connectors. Depending on the cable, the DH Series caters for speeds up to 2.5Gb/s. Applications include enterprise networking, industrial, telecom and datacom.

• 50% reduction in mating face area because of smaller pitch sizes
• Robust, D-shaped interface design resists wrenching forces
• Receptacle's through-hole style metal fittings facilitate retention to PCB
• Unique contact arrangement for IDC termination
• Excellent shielding for EMI prevention

DH Series
