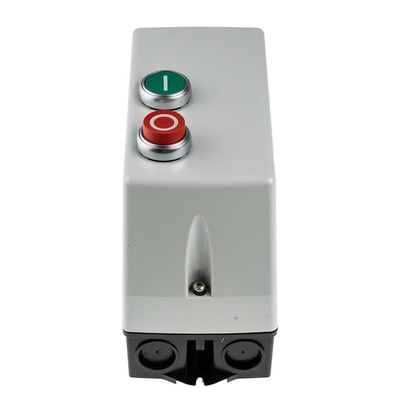

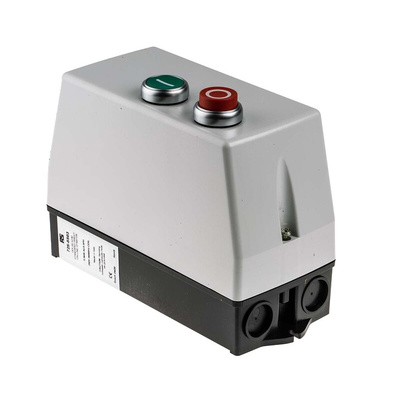

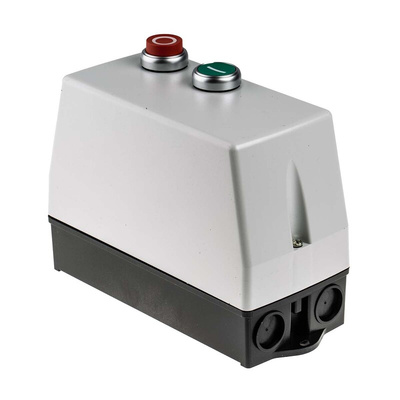

RS PRO DOL Starter, DOL, 5.5 kW, 230 V ac, 3 Phase, IP65, Пускатель

RS PRO 5.5 kW DOL Starter, 230 V AC, 3 Phase, IP65

This handy 5.5 kW automatic 3-phase starter can be used to reduce the current required when starting up induction motors. These types of starters are best-suited for use with induction motors rated below 5 hp.

Motor starters work best with overload protection devices to prevent short circuits or overheating. This particular model doesn't come with one, but you can one from the RF38 series to match the full-load current of your motor – for example, stock no. 685-130.

This DOL starter is part of our trusted RS PRO range and has a moulded plastic case that offers IP65 ingress protection. The case is an effective shield against dust and high-pressure water jets from any direction. This starter is used in a variety of motor-driven applications from large fans and water pumps to workshop machinery.

Features and Benefits

• Power rating of 5.5 kW
• DOL motor starter type
• Voltage rating of 230 V AC
• IP65 ingress protection to protect from dust and water jets
• Current rating of 9 to 14 A
• Three poles
• Three-phase starter
• Automatic motor starter functionality
• Disconnect switch not included
• Length of 193 mm
• Width of 88 mm
• Depth of 134 mm
• Conforms to standards IEC 60947 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits)
• RoHS(Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
