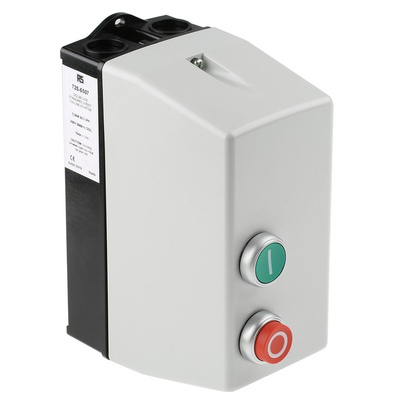

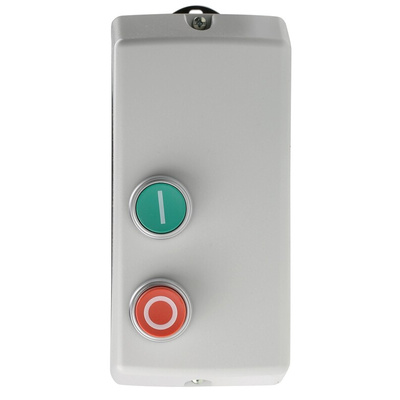

RS PRO 5.5 kW DOL Starter, 400 V ac, 3 Phase, IP65

The 5.5 kW automatic 3-phase starter is a direct-on-line (DOL) motor starter is typically used with induction motors rated below 5 hp. It's a practical way to lower the current requirement when starting up induction motors.

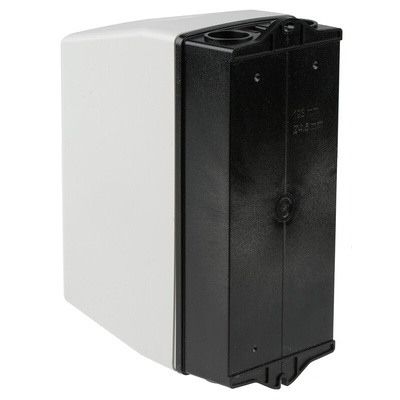

This starter has a moulded plastic case that's IP65 rated, giving it protection against dust and high-pressure water jets from any direction. It's useful to fit motor starters with an overload protection device to prevent short circuits or overheating issues. This model doesn't include one, so you would need to select one from the RF38 series – for example, stock no. 685-130 – to match the full-load current of your motor.

You'll find this DOL starter in motor-driven applications, such as workshop machinery, large fans and water pumps. It also conforms to standards IEC 60947 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits) and is RoHS (Restriction of Hazardous Substances) compliant.

Features and Benefits

• Power rating of 5.5 kW
• DOL motor starter type
• Voltage rating of 400 V AC
• IP65 ingress protection to protect from dust and water jets
• Current rating of 9 to 14 A
• Three poles
• Three-phase starter
• Automatic motor starter functionality
• Disconnect switch not included
• Length of 193 mm
• Width of 88 mm
• Depth of 134 mm
• IEC/EN 60947-1 (low-voltage equipment safety), IEC/EN 60947-4-1 (protection from short-circuits), RoHS (Restriction of Hazardous Substances) compliant
