RS PRO DOL Starter, DOL, 7.5 kW, 230 V ac, 3 Phase, IP65, Пускатель

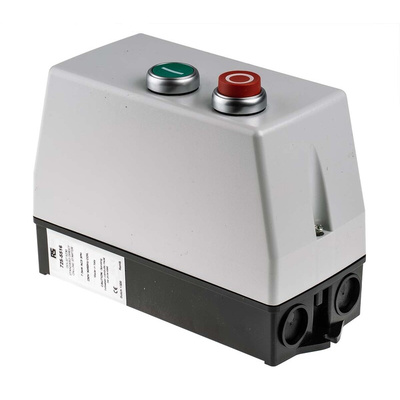

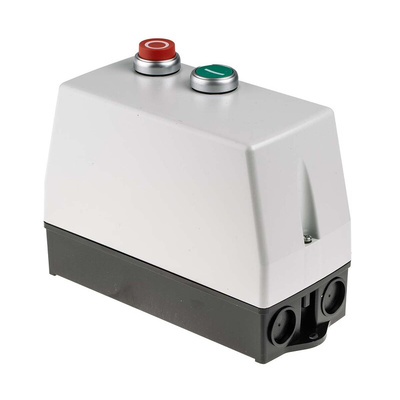

RS PRO 7.5 kW DOL Starter, 230 V AC, 3 Phase, IP65

Used to reduce the current required when starting up induction motors, the 7.5 kW automatic 3-phase starter is a direct-on-line (DOL) motor starter. This type of starter is typically used with induction motors rated below 5 hp.

To prevent short circuits or overheating, it can be helpful to fit motor starters with an overload protection device. This model doesn't include an overload, so you would need to match the full-load current of your motor with one from the RF38 series – for example, stock no. 685-130.

As it's part of the RS PRO range, you can be sure this DOL starter has undergone stringent quality testing. It has a moulded plastic case that provides IP65 ingress protection. The case is an effective shield against dust and high-pressure water jets from any direction. Starters like this are commonly found in motor-driven applications from workshop machinery to fans and water pumps.

Features and Benefits

• Power rating of 7.5 kW
• DOL motor starter type
• Voltage rating of 230 V AC
• IP65 ingress protection to protect from dust and water jets
• Current rating of 13 to 18 A
• Three poles
• Three-phase starter
• Automatic motor starter functionality
• Disconnect switch not included
• Length of 193 mm
• Width of 88 mm
• Depth of 134 mm
• Conforms to standards IEC 60947 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits)
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
