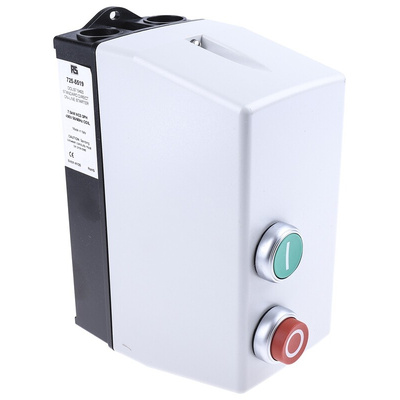

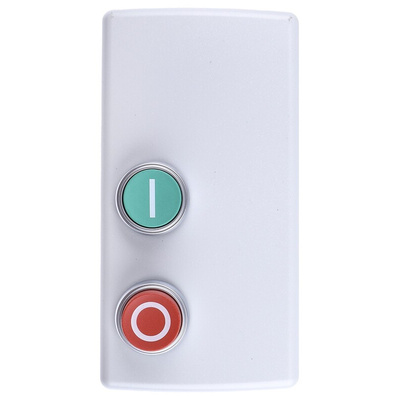

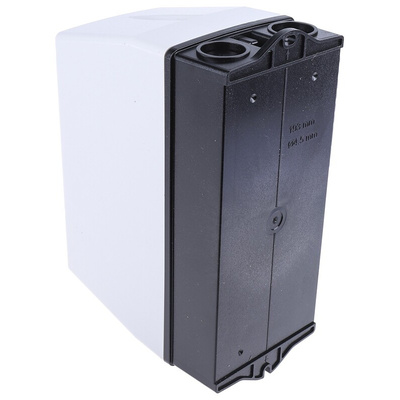

RS PRO DOL Starter, DOL, 7.5 kW, 400 V ac, 3 Phase, IP65, Пускатель

RS PRO DOL Starter, 400 V AC, 7.5 kW

Use this DOL (direct-on-line) starter from RS PRO as a safe, reliable way to activate your motorised equipment. It's designed for automatic operation, which makes it particularly suitable for applications where you don't always have direct access.
The unit has a broad operating temperature range of -25°C to +60°C, which means it can be used in a variety of different environments with demanding atmospheric conditions. It also has a durable enclosure made of moulded plastic for its circuitry, with an Ingress Protection (IP) rating of IP65, showing that it protects against dust, small particles and water spray.
This product is available without an isolator, which will free up enough space to mount an additional 17.5 mm module on your DIN rail. It's an ideal solution for starting small water pumps, as well as conveyor belts.

Features and Benefits

• Disconnect switch not included
• Current rating of 13 A to 18 A
• Motor starter housed in enclosure
• Automatic motor start functionality
• Depth of 134 mm
• Length of 193 mm
• Width of 88 mm
• Three-phase
• Three poles
• Power rating of 7.5 kW
• Voltage rating of 400 V AC

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
