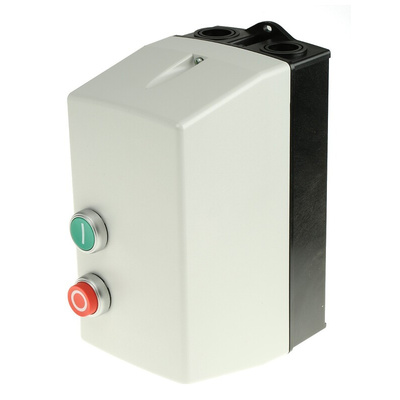

RS PRO DOL Starter, DOL, 11 kW, 400 V ac, 3 Phase, IP65, Пускатель

RS PRO 3-Phase DOL Starter, 400 V AC, 11 kW, IP65

When you need to safely and reliably initialise a motor, use this RS PRO DOL (direct-on-line) starter. It's particularly suitable for applications where you don't always have direct access as it's designed for automatic operation.


The starter's enclosure is made of moulded plastic for improved durability. It's suitable for installation indoors and outdoors, as it has an IP65 rating. This means it's fully protected against dust and is water-resistant. Its broad operating temperature range of -25°C to +60°C makes it a good choice for use in demanding environments.


The starter is ideal for starting small water pumps, fans and conveyor belts. It's available without an isolator, meaning there's enough space to mount an additional 17.5 mm module on your DIN rail.

Features and Benefits

• Disconnect switch not included


• Current rating of 17 A to 23 A


• Enclosure


• IP65 rated


• Automatic motor starter functionality


• DOL (direct-on-line) motor starter type


• Depth of 134 mm


• Length of 193 mm


• Width of 88 mm


• Three-phase


• Three poles


• Power rating of 11 kW


• Complies with IEC/EN 60947-1, IEC/EN 60947-4-1 and RoHS (Restriction of Hazardous Substances) standards


• Voltage rating of 400 V AC

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
