RS PRO DOL Starter, DOL, 5.5 kW, 230 V ac, 3 Phase, IP65, Пускатель

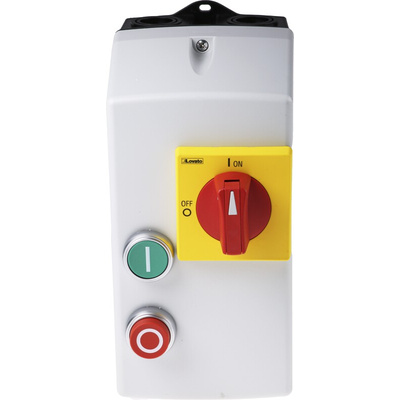

RS PRO 5.5 kW DOL Starter, 230 V ac, 3 Phase, IP65

The direct-on-line (DOL) motor starter is a 5.5 kW automatic 3-phase starter that can reduce current requirements for use with induction motors. They are especially helpful for starting induction motors rated below 5 hp.

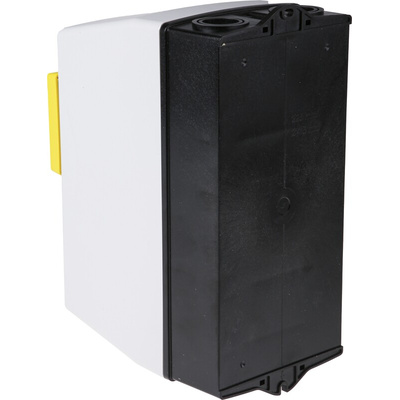

This model doesn't include an overload, so you would need to select one from the RF38 series – for example, stock no. 685-130 – to match the full-load current of your motor. This DOL starter from our trusted RS PRO brand has a moulded plastic case that provides IP65 ingress protection. This means you won't have to worry about damage from dust and high-pressure water jets from any direction.

You'll find this DOL motor starter in several motor-focused applications including in workshop machinery, large fans and water pumps. What's more, it conforms to standards IEC 60947 and IEC 60947-4-1 as certified safe low-voltage equipment that's also protected from short-circuits.

Features and Benefits

• Power rating of 5.5 kW
• DOL motor starter type
• Voltage rating of 230 V AC
• IP65 ingress protection to protect from dust and water jets
• Current rating of 9 to 14 A
• Three poles
• Three-phase starter
• Automatic motor starter functionality
• Disconnect switch included
• Length of 225 mm
• Width of 110 mm
• Depth of 148 mm
• Conforms to standards IEC 60947 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

Selection Guide

Wiring Diagram

RS PRO Datasheet
