RS PRO DOL Starter, DOL, 5.5 kW, 400 V ac, 3 Phase, IP65, Пускатель

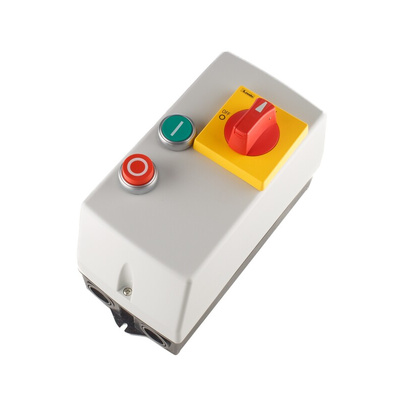

RS PRO 5.5 kW DOL Starter, 400 V AC, 3 Phase, IP65

The 5.5 kW automatic 3-phase starter is a direct-on-line (DOL) motor starter used to reduce the current required when starting up induction motors. Such starters are particularly handy for use with induction motors rated below 5 hp.

It can be helpful to fit motor starters with an overload protection device to prevent short circuits or overheating. This model doesn't include one, so you would need to select one from the RF38 series – for example, stock no. 685-130 – to match the full-load current of your motor.

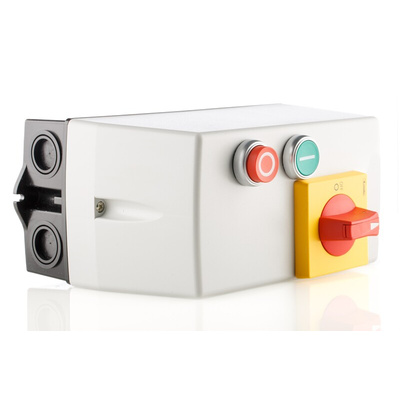

This DOL starter from our trusted RS PRO brand has a moulded plastic case that provides IP65 ingress protection. That means it's an effective shield against dust and high-pressure water jets from any direction. You'll find it in a variety of motor-driven applications, including workshop machinery, large fans and water pumps.

Features and Benefits

• Power rating of 5.5 kW
• DOL motor starter type
• Voltage rating of 400 V AC
• IP65 ingress protection to protect from dust and water jets
• Current rating of 9 to 14 A
• Three poles
• Three-phase starter
• Automatic motor starter functionality
• Disconnect switch included
• Length of 225 mm
• Width of 110 mm
• Depth of 148 mm
• Conforms to standards IEC 60947 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
