RS PRO DOL Starter, DOL, 7.5 kW, 400 V ac, 3 Phase, IP65, Пускатель

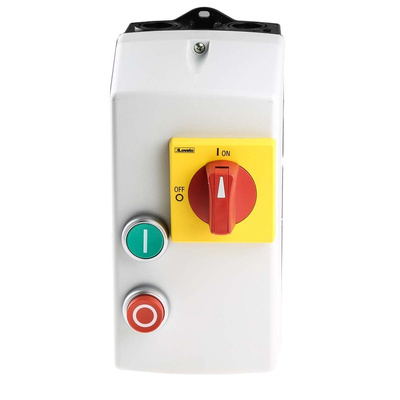

RS PRO 7.5 kW DOL Starter, 400 V ac, 3 Phase, IP65

This direct-on-line (DOL) motor starter from our trusted RS PRO range reduces the current required when starting up induction motors, especially those rated below 5 hp.

This DOL starter is a 7.5 kW automatic 3-phase starter. You might like to fit it with an overload protection device that will help prevent problems from short-circuiting or overheating. This model doesn't include an overload, so you would need to select one from the RF38 series – for example, stock no. 685-130 – to match the full-load current of your motor.

The starter is used generally used in motor-driven applications, such as workshop machinery, large fans and water pumps. It also has a moulded plastic case with IP65 ingress protection, so it has reliable shielding against dust and high-pressure water jets from any direction.

Features and Benefits

• Power rating of 7.5 kW
• DOL motor starter type
• Voltage rating of 400 V AC
• IP65 ingress protection to protect from dust and water jets
• Current rating of 13 to 18 A
• Three poles
• Three-phase starter
• Automatic motor starter functionality
• Disconnect switch included

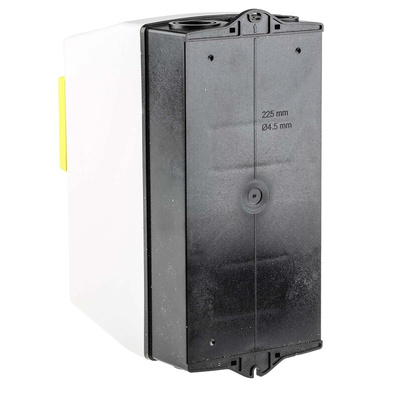

• Length of 225 mm
• Width of 110 mm
• Depth of 148 mm
• Conforms to standards IEC 60947 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits), and RoHS (Restriction of Hazardous Substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
