RS PRO Star Delta Starter, Star Delta, 30 kW, 230 V ac, 3 Phase, IP65, Пускатель

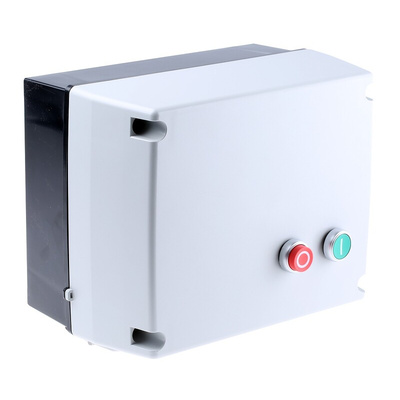

RS PRO 3-Phase Star Delta Starter, 230 V AC, 30 kW, IP65

Use this star-delta starter from RS PRO to protect your equipment and motor during startup. It's a reliable solution that allows you to start your motor in three phases, with a lower inrush current to prevent damage. The initial phase uses a star connection to an induction motor, then transfers to a delta connection when it reaches 80% of its load speed.


The starter is protected against dust, small particles and water spray thanks to its IP65 rating. The starter housing is made of moulded plastic, which makes it highly durable and impact-resistant.


A starter like this one is often used in pumps, conveyors and engineering machinery. It can be operated up to 30 times in an hour, so it's particularly useful for applications where you need to frequently stop and start your motor.

Features and Benefits

• Disconnect switch not included


• Current rating of 32 A to 38 A


• Enclosure


• IP65 rated


• Star delta motor starter


• Depth of 170 mm


• Length of 220 mm


• Width of 280 mm


• Three-phase


• Three poles


• Power rating of 30 kW


• Complies with IEC/EN 60947-1, IEC/EN 60947-4-1 and RoHS (Restriction of Hazardous Substances) standards


• Voltage rating of 230 V AC

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
