RS PRO Star Delta Starter, Star Delta, 11 kW, 230 V ac, 3 Phase, IP65, Пускатель

RS PRO 3-Phase Star Delta Starter, 230 V AC, 11 kW, IP65

Looking to protect your motor during startup? This RS PRO star-delta starter allows a motor to be started in three phases, with a lower inrush current to prevent damage. The initial phase uses a star connection to an induction motor, then transfers to a delta connection when it reaches 80% of its load speed.

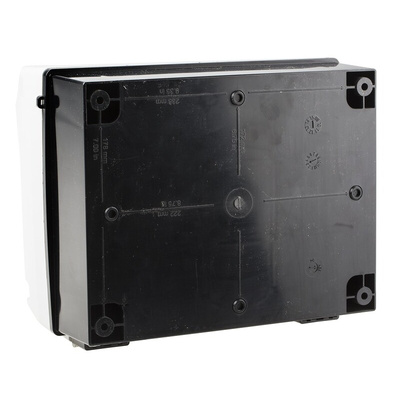

The housing is made of moulded plastic, making it highly durable and impact resistant. This unit is suitable for use in a range of demanding indoor and outdoor environments, as it has an IP65 rating for protection against water spray, dust and small particles.


A starter like this one is often used in pumps and conveyors. As it can be operated up to 30 times in an hour, it's a good choice for applications where your motor has to be stopped and started frequently.

Features and Benefits

• Disconnect switch not included


• Current rating of 9 A to 14 A


• Enclosure


• IP65 rated


• Star delta motor starter


• Depth of 170 mm


• Length of 220 mm


• Width of 280 mm


• Three-phase


• Three poles


• Power rating of 11 kW


• Complies with IEC/EN 60947-1, IEC/EN 60947-4-1 and RoHS (Restriction of Hazardous Substances) standards


• Voltage rating of 230 V AC

Dimensional Drawing

Selection Guide

RS Pro Datasheet

Wiring Diagram
