RS PRO Star Delta Starter, Star Delta, 15 kW, 230 V ac, 3 Phase, IP65, Пускатель

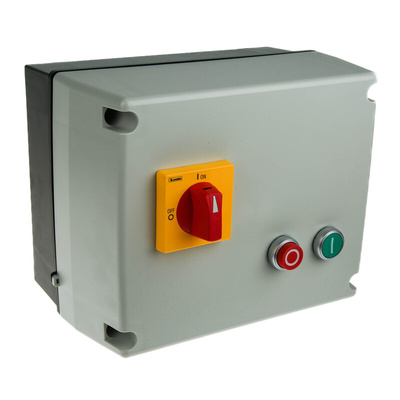

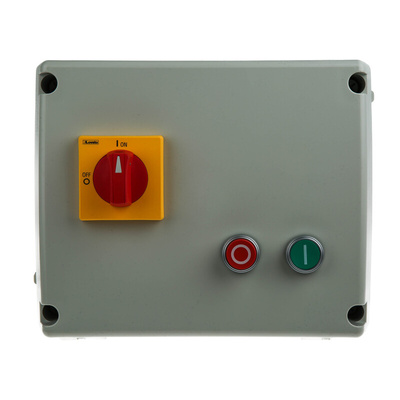

RS PRO 3-Phase Star Delta Starter, 230 V AC, 15 kW, IP65

To protect your motor and equipment during startup, use this RS PRO star-delta starter. It's a simple and reliable solution that allows you to start your motor in three phases, with a lower inrush current to prevent damage. The initial phase involves a star connection to an induction motor. When it reaches 80% of its load speed, it transfers to a delta connection.

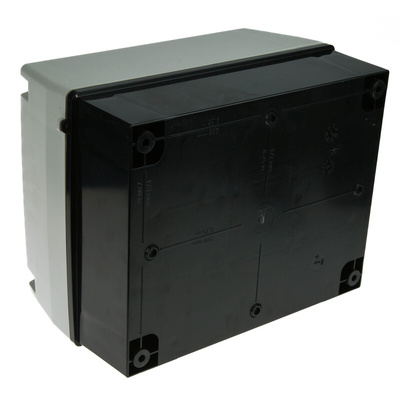

The starter is housed in a moulded plastic enclosure, which makes it durable and resistant to impacts. The unit has an IP65 rating, so it's protected against small particles, dust and low-pressure water spray.


This product can be operated up to 30 times in an hour, making it particularly suitable for applications where the motor requires frequent stopping and starting. A starter like this one is often used in engineering equipment, pumps and conveyors.

Features and Benefits

• Disconnect switch not included


• Current rating of 13 A to 18 A


• Enclosure


• IP65 rated


• Star delta motor starter


• Depth of 170 mm


• Length of 220 mm


• Width of 280 mm


• Three-phase


• Three poles


• Power rating of 15 kW


• Complies with IEC/EN 60947-1, IEC/EN 60947-4-1 and RoHS (Restriction of Hazardous Substances) standards


• Voltage rating of 230 V AC

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
