RS PRO Star Delta Starter, Star Delta, 22 kW, 400 V ac, 3 Phase, IP65, Пускатель

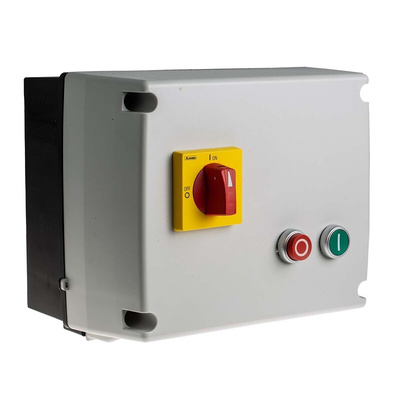

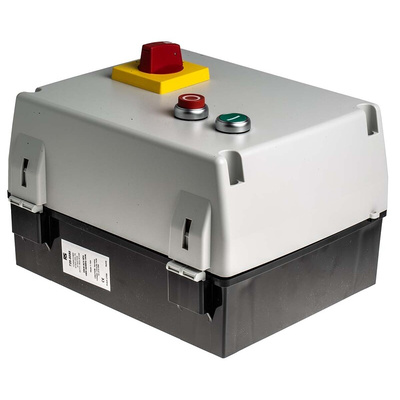

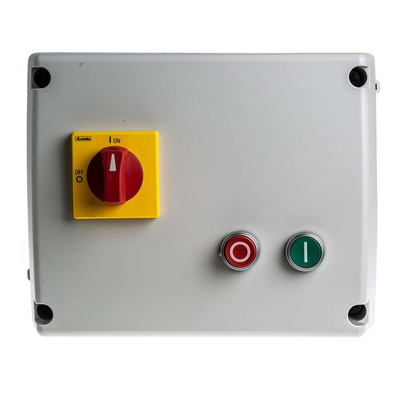

RS PRO 22 kW Star Delta Starter, 400 V ac, 3 Phase, IP65

This RS PRO 22 kW 3-phase star-delta starter means you can start motors at a lower voltage, so it's a sensible option when you're using a motor on-and-off or with frequent starts and stops.

You might choose to fit an overload to this starter to protect against electrical surges and overheating. You'll need a compatible overload from the RF38 series (for example stock no. 685-1309) to match the full-load current of your motor as this model doesn't come with one. The device consists of three efficient contacts, along with a timer. It operates at temperatures ranging from -25°C to +60°C.

A star-delta motor starter controls winding currents only and is found in manufacturing environments. It has a moulded plastic case that provides IP65 ingress protection, shielding against dust and high-pressure water jets. Plus, it's compliant with IEC 60947-1 (low-voltage equipment safety) and IEC 60947-4-1 (protection from short-circuits).

Features and Benefits

• Power rating of 22 kW
• Current rating of 24 to 32 A
• Star delta motor starter type
• Length of 220 mm
• Width of 280 mm
• Depth of 170 mm
• IP65 ingress protection
• Three poles
• Three-phase starter
• Voltage rating of 400 V AC
• Disconnect switch included
• Compliant with RoHS (Restriction of Hazardous Substances), IEC 60947-1 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
