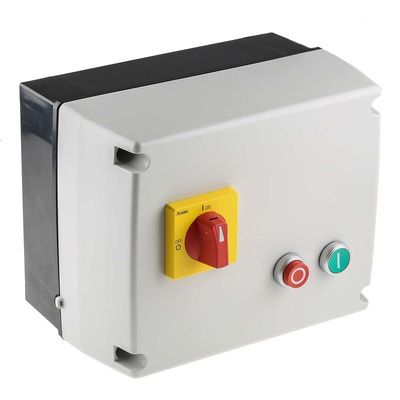

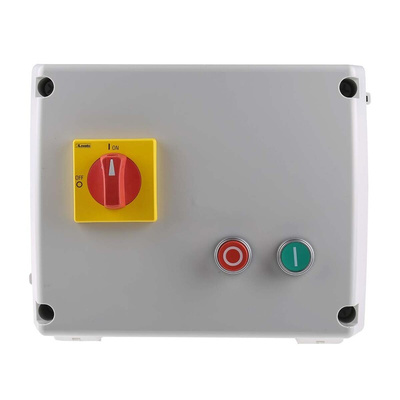

RS PRO Star Delta Starter, Star Delta, 15 kW, 400 V ac, 3 Phase, IP65, Пускатель

RS PRO 15 kW Star Delta Starter, 400 V AC, 3 Phase, IP65

This 15 kW three-phase star-delta starter is a sensible choice when you're using a motor intermittently or with frequent starts and stops as it allows you to start motors at a lower voltage. It consists of three contacts, along with a timer and a thermal overload to prevent it overheating.

The star-delta has an operating temperature range of -25°C to +60°C. You can fit your starter motor with an overload to protect against electrical surges, but this one is supplied without. Select a compatible overload from the RF38 series (for example stock no. 685-1309) to match the full-load current of your motor.

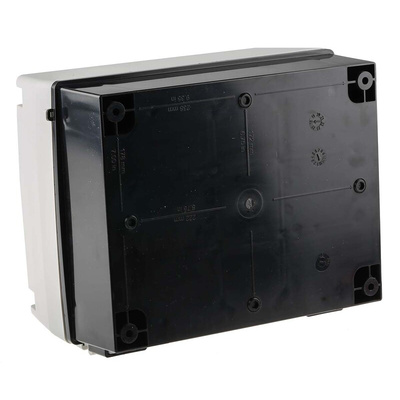

Star-delta motor starters control winding currents only and are RoHS compliant, meaning they don't include harmful levels of hazardous substances. Its moulded plastic case is IP65 rated, so there's full protection against dust and high-pressure water jets from any direction. It's commonly found in manufacturing environments.

Features and Benefits

• Power rating of 15 kW
• Current rating of 13 to 18 A
• Star delta motor starter type
• Length of 220 mm
• Width of 280 mm
• Depth of 170 mm
• IP65 ingress protection
• Three poles
• Three-phase starter
• Voltage rating of 400 V AC
• Disconnect switch included
• RoHS (Restriction of Hazardous Substances), IEC 60947-1 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
