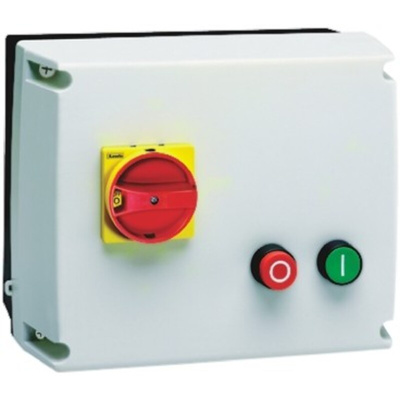

RS PRO Star Delta Starter, Star Delta, 30 kW, 230 V ac, 3 Phase, IP65, Пускатель

Enclosed Star-Delta Motor Starters

A range of enclosed Star-Delta motor starters which combine high performance and low cost. The range includes options with and without isolator and support for motors from 11 kW to 30 kW.

Moulded plastic case providing IP65 ingress protection
Compliant with standards IEC/EN 60947-1 and IEC/EN 60947-4-1
Operating temperature range -25 °C → +60 °C
Starting time up to 12s and a maximum of 30 operations per hour

Note

Each starter is supplied WITHOUT an overload. An appropriate overload must be selected from the RF38 series (for example stock no. 685-1309) and would normally be rated at 58% of the motor FLC.

Dimensional Drawing

Selection Guide

Wiring Diagram

RS Pro Datasheet
