RS PRO Star Delta Starter, Star Delta, 30 kW, 400 V ac, 3 Phase, IP65, Пускатель

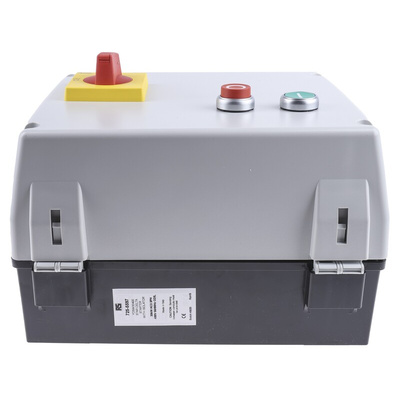

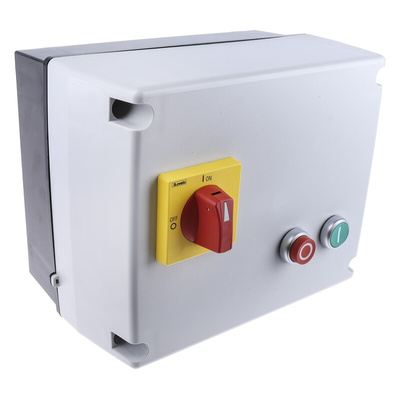

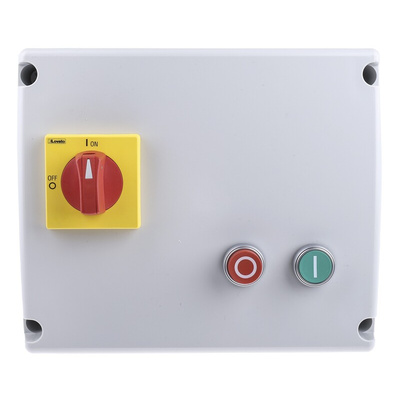

RS PRO 30 kW Star Delta Starter, 400 V ac, 3 Phase, IP65

Start motors at a lower voltage with this 30 kW three-phase star delta starter. A star-delta starter consists of three efficient contacts, along with a timer and a thermal overload to prevent it overheating. It operates at temperatures ranging from -25°C to +60°C and is found in manufacturing environments.

You may want to fit your starter motor with an overload to protect against electrical surges, but this one is supplied without. You can choose a compatible overload from the RF38 series (for example stock no. 685-1309) to match the full-load current of your motor.

The star-delta starter is a great choice to consider when you're using a motor intermittently or with frequent starts and stops. It has a moulded plastic case and an IP65 rating, which assures protection against dust and high-pressure water jets from any direction. Star delta motor starters control winding currents only. It conforms to IEC 60947-1 (low-voltage equipment safety) and IEC 60947-4-1 (protection from short-circuits) standards.

Features and Benefits

• Power rating of 30 kW
• Current rating of 32 to 38 A
• Star delta motor starter type
• Length of 220 mm
• Width of 280 mm
• Depth of 170 mm
• IP65 ingress protection
• Three poles
• Three-phase starter
• Voltage rating of 400 V AC
• Disconnect switch included
• Compliant with RoHS (Restriction of Hazardous Substances), IEC 60947-1 (low-voltage equipment safety), IEC 60947-4-1 (protection from short-circuits)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
