RS PRO Both DTI Gauge, +0.8mm Max. Measurement, 0.01 mm Resolution, ±0.008 mm Accuracy, Индикатор

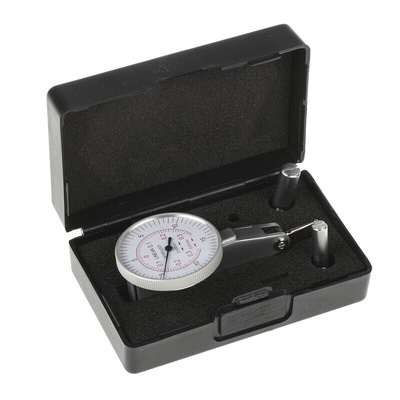

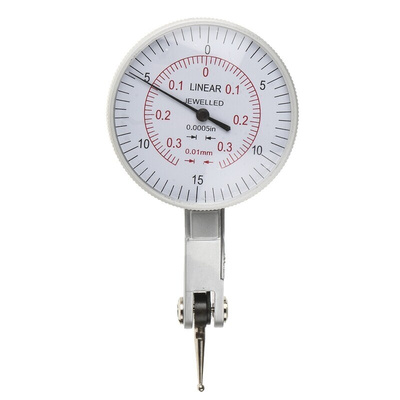

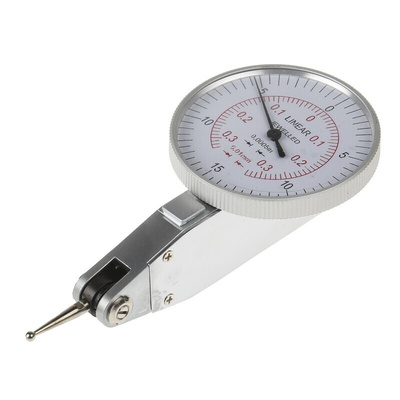

RS PRO Both Lever Dial Indicator, +0.8 mm max. Measurement, 0.01 mm Resolution, ±0.008 mm Accuracy

This lever dial indicator is used to measure surface variations of a component or for comparison of multiple components.

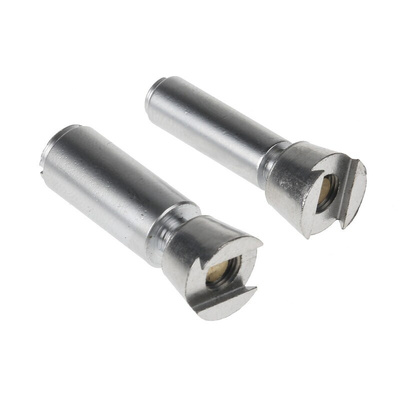

With dial graduations of 0.01 mm and an accuracy level of ±0.008 mm, the satin-chrome indicator offers a high level of precision in its readings. A rotating bezel makes it easier to zero the dial on the master component. The jewelled bearings in the indicator provide high sensitivity, accuracy and a reversible measuring direction. For versatility, it comes with 6 mm and 8 mm spigots to increase the range of frame to which it can be attached.

The 2 mm ball anvil can be replaced if damaged or worn, increasing the working life of the indicator. This level dial indicator – which has been thoroughly tested as part of the RS PRO range – is suitable for use in workshops or inspection applications.

Features and Benefits

• Lever dial indicator
• Satin chrome body
• Dial diameter of 40 mm
• Maximum measurement of 0.8 mm
• Resolution of 0.01 mm
• Accuracy of ±0.008 mm
• Dial displays both metric and imperial scale

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

RS Pro Datasheet
