NFE31PT220R1E9L, Murata, NFE31P, Signal Filter, 25 V dc, 6A, SMD, 3.2 x 1.6 x 1.6mm, Фильтр

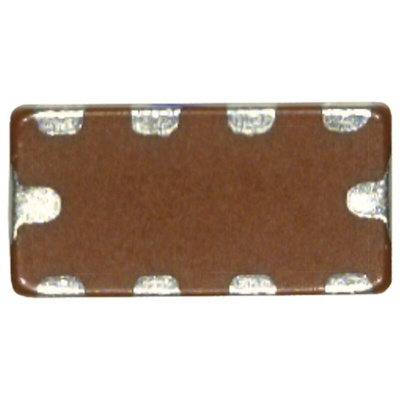

1206 EMIFIL® Array (Capacitor type) - NFA31C Series

NFA31C series SMT chip EMI suppression filter for applications using Murata's ceramic processing technology and filter design technology.
This series is well suited for EMI suppression in digital I/O lines of varied electronic equipment such as notebook size PCs.

High density mounting can be achieved as a result of 4 circuits being in one package with 0.8mm pitch
Suitable for high frequency noise suppression because of low residual inductance of three terminal structure
Excellent EMI suppression can be realised due to two terminal simple GNDs for 4 circuits
22 to 22,000pF line-ups can be used depending on noise frequency.

Applications

Personal computers and peripherals
Telephones, PPCs, communications equipment
Digital TVs, DVDs

Signal/Line/Noise and Feedthrough – PCB Mount (SMT)

Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.

EMIFIL (LC Combined) Feed through Type NFE31P Series (1206 Size) for Large Current Data Sheet
