TSPC 480-124, TRACOPOWER TSPC Switch Mode DIN Rail Power Supply, 85 → 132V ac ac Input, 24V dc dc Output, 20A Output, 480W, Блок питания

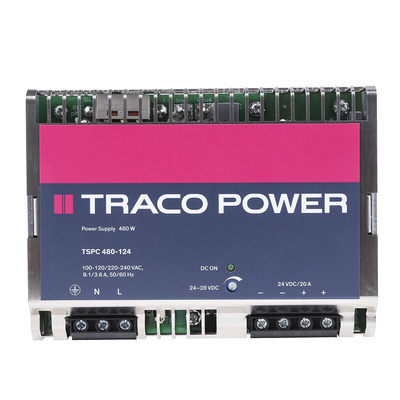

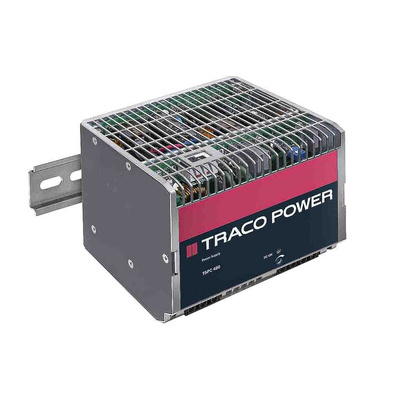

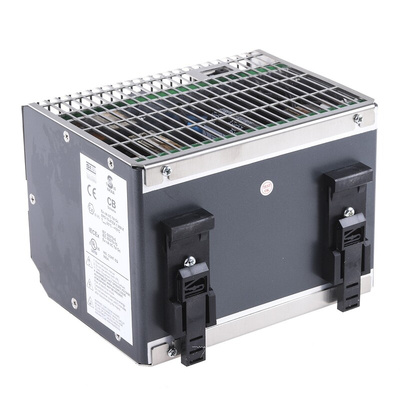

Traco Power DIN Rail Power Supply, 95% Maximum Relative Humidity, 110 (H) x 115 (W) x 150mm (D) - TSPC Series - TSPC 480-124

Keep your kit energised with this DIN rail power supply from Traco Power. It accepts a wide supply voltage from 85 to 132V AC and outputs a regulated 24V DC for easy compatibility with commonly used components. The versatile device has a load regulation of ±1%, so you can be sure you're getting a glitch-free supply. Thanks to a mean time between failures of 1,400,000 hours, this unit is on hand to take care of business in the long run.

Features & Benefits

• Suitable for use in explosive environments, thanks to its ATEX certification
• Standard DIN rail mounting method makes installation fast and straightforward
• 92% efficiency means it's an energy-conscious option
• Convection cooling technology means there's no need for a fan or heat sink
• Performs reliably in temperatures between -25°C and +70°C

Applications

• Industrial automation
• Pharmaceutical manufacturing
• Telecommunications networks
• Heating systems
• Lighting rigs

How big is this power supply?

The component has compact dimensions of 150 (W) x 115 (L) x 110mm (D), so it slots neatly onto rails where space is at a premium.
