87621121, Crouzet CTR48 Counter, 6 Digit, 40kHz, 30 V dc, Счетчик

Crouzet Digital Counter

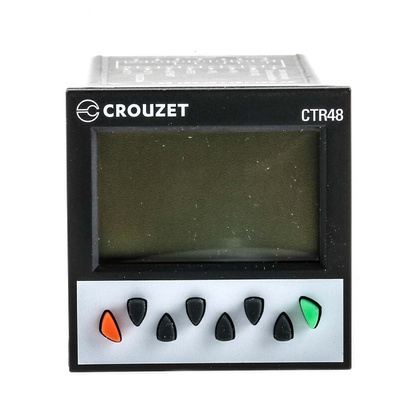

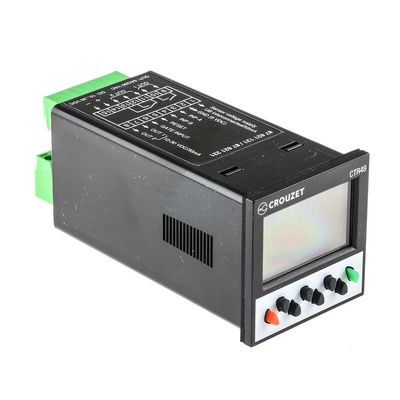

The Crouzet CTR48 series digital counter is a preset, multifunction, backlit, and panel mounted device device. This counter has a voltage input and relay output. It has a 6-digit LCD display and maximum input frequency 40KHz. The display ranges between -999999 and +999999. This counter has a supply voltage rating of 30VDC. It supports various operating modes such as up, down, command, individual, and quadrature. It can be used as a counter, tachometer, chronometer, multi-totalizer, batch counter, and preselection totalizer.

Features and Benefits

Simple parameter setting, configuration using text menus
Easy modification of presets
Scaling factor
5A changeover relay and solid state output
Removable connectors
Option of locking the keypad, completely or partially (preset, programming)
Accessories include 72 x 72, 55 x 55 cut-out or a DIN rail adaptor
Panel cut out dimensions are 45mm x 45mm

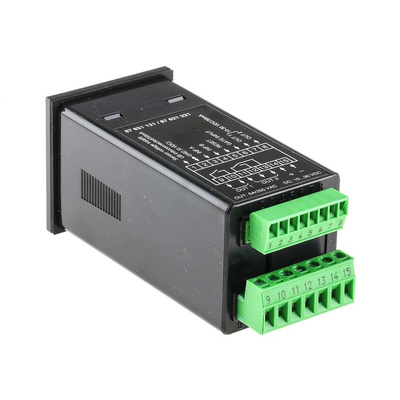

Plug-in screw terminal connection
Operating temperature ranges between -20°C and 65°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly line

Certifications

UL approved
CE certified
