87622170, Crouzet CTR24 Counter, 8 Digit, 260 V, Счетчик

Crouzet Digital Counter

The Crouzet CTR24 series digital counter is an impulse, panel mount and is powered by an internal lithium battery device. This counter has a voltage input device and has an 8-digit LCD display. This device has four timing ranges from 0 to 99.999.99 hours, 0 to 99.999.59 hours, 0 to 999.999.9 seconds, and also 0 to 9.999 hours 59 minutes and 59 seconds. This counter supplies a voltage rating of 260VAC/VDC.

Features and Benefits

Reset on panel or external (via terminals) with inhibition option
Non-backlit
Accessories available for 50 x 25mm cut-out
Front dimensions 48mm x 24mm

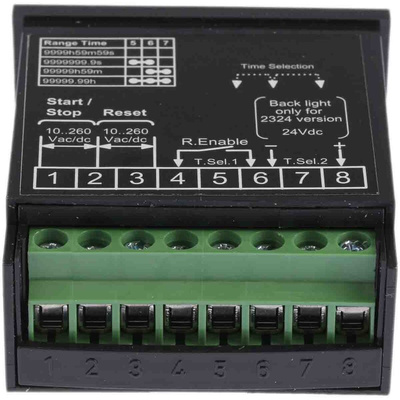

Plug-in screw terminal connection
Operating temperature ranges between -10°C and 60°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly line

Certifications

UL approved
CE certified
EN 61000-6-2 - EN 55011 class B

CTR24-2233/2223/2224/2333/2323/2324 LCD Hour meter Operating instructions

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
