RS PRO, Plain Stainless Steel Flanged Hex Nut, DIN 6923, M5, Гайки

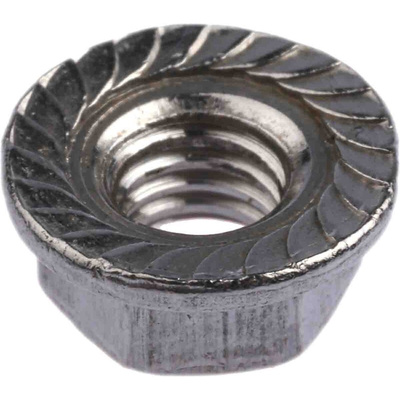

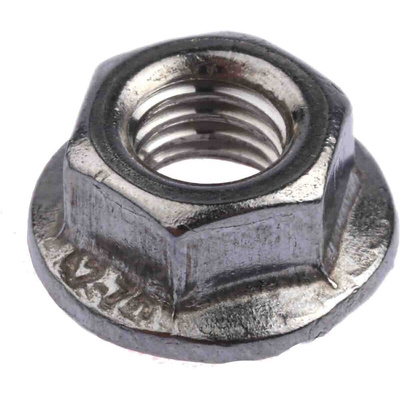

RS PRO 11.8 mm Serrated Stainless Steel Hex Flanged Nut, M5, A2 304

This stainless steel hex flanged nut is a fastener with a wide-flanged portion that acts as a non-spinning washer. Part of our tried and tested RS PRO range, these nuts have a flanged portion on one end. This lets you distribute the pressure of the nut without having to buy or install washers – the metal discs typically placed over nuts, bolts and screws to stop them from coming loose.

This hex flanged nut is made from corrosion-resistant stainless steel. The flanged portion is serrated, so it 'bites' into whatever surface it’s installed into. This provides a more secure fastening and protects against strong vibrations.

Hex flanged nuts are used in soft installation materials, manufacturing assembly lines and the automotive industry. Ours are RoHS certified as containing only minimal amounts of restricted hazardous substances.

Features and Benefits

• Hex flange nut
• M5 thread size
• Width of 8 mm
• Overall height of 5 mm
• Flange diameter of 11.8 mm
• Made from corrosion resistant stainless steel (type A2 304)
• Serrated finish
• Conforms to safety standard DIN 6923 for hexagonal flange nut

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size: 7259650
Large Pack Size: 2646432

Standards

DIN6923

RS Pro Datasheet

Fasteners Selection Guide 56 Pages
