RSF46H050TG, Sensata / Cynergy3 Sensata/Cynergy 3 RSF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NO/NC, 300V

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

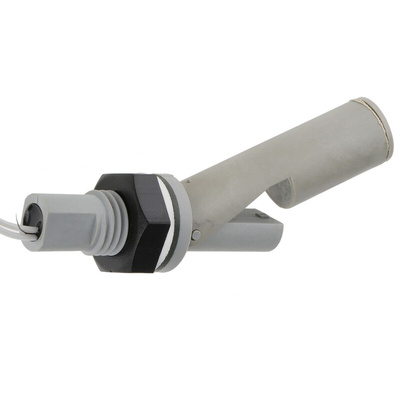

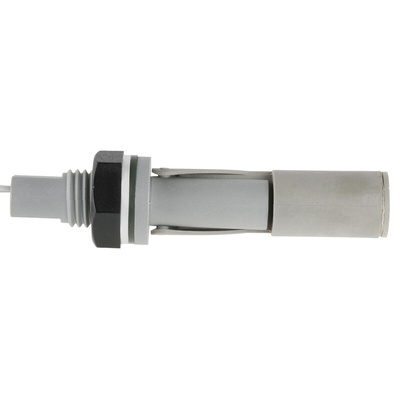

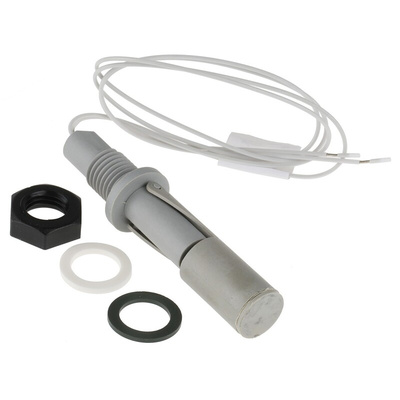

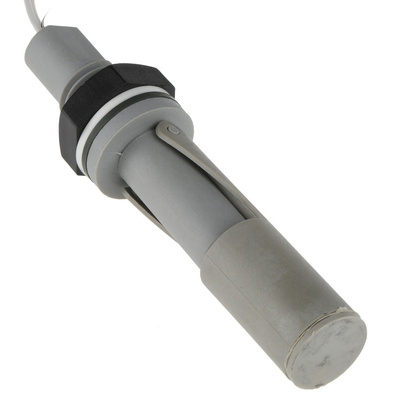

Sensata Cynergy3 Internal Horizontal Float Switch, 500mm Cable, 1A Switching Current - RSF40 Series - RSF46H050TG

Accurately detect the levels of liquids in your containers with this internal horizontal float switch from Sensata Cynergy3. Its PPS (polyphenylene sulfide) body material is resistant to abrasion and chemicals for long-lasting performance. A broad operating temperature range between -10°C and +120°C makes it suitable for use in harsh environments. For versatility, you can rotate the switch through 180° to reverse the switch action. The switch is designed for installation on the inside of the tank, so it's a good choice for situations where it's inconvenient to install it on the outside. It's commonly used in vending machines and commercial washing machines.

Features & Benefits

• Viton gasket material is resistant to oils, solvents and heat for a durable, leakproof seal
• Maximum switching current of 1A for energy-efficient operation
• Cable length of 500mm for an adequate reach to a power source

What parts are contained in this float switch?

This float switch has a reed switch and pivoted magnet that's suitable for NO or NC operations. The movement of the attached float triggers this reed switch to open or close when fluid levels reach preset values.
