RSF46H100RF, Sensata / Cynergy3 RSF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

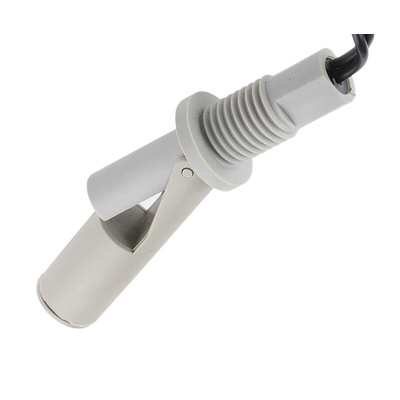

Sensata Cynergy3 Internal Horizontal Float Switch, 1m Cable, 1A Switching Current - RSF40 Series - RSF46H100RF

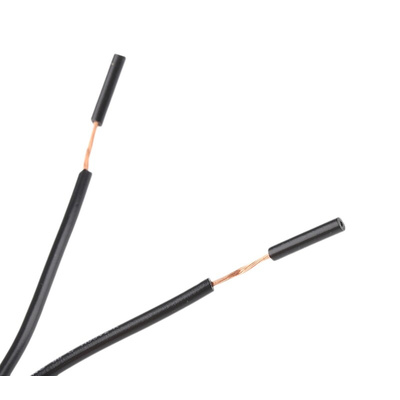

Looking for a way to automatically control the liquid levels in your industrial, commercial and domestic tanks? This internal horizontal float switch from Sensata Cynergy3 is a level sensor that helps to prevent overfilling and underfilling. It works by using an innovative reed switch with a pivot actuator to open or close when the fluid in a tank reaches a preset level. The component comes with a 1m cable that offers a flexible reach to a power source. You'll find this type of switch used in washing machines and evaporators.

Features & Benefits

• Robust PPS (polyphenylene sulfide) body material is resistant to chemicals, corrosion and abrasion
• Low switching current of 1A to ensure energy-efficient operation
• Nitrile gasket is resistant to wear and chemicals for a durable seal
• Cable sheath made of impact-resistant PVC to protect wires from damage

Can I reverse the switch action of this float switch?

Yes. You can change the switch action by simply rotating the switch through 180° and reinstalling it, making this switch a versatile choice.

RSF40 Series Internal Switch Datasheet
