RSF83Y100R, Sensata / Cynergy3 Cynergy3 RSF80 Series Horizontal External Nylon Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

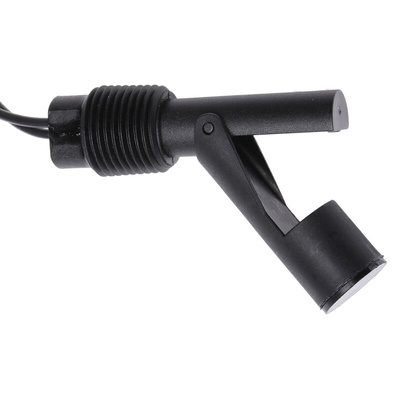

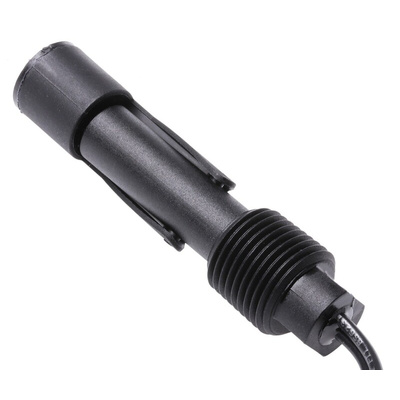

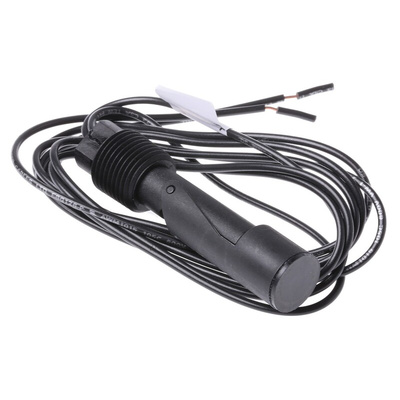

Sensata Cynergy3 External Mount Horizontal Float Switch, NO/NC, 1m - RSF80 Series - RSF83Y100R

Fit this efficient float switch from Sensata Cynergy3 without the need to gain access to the inside of your tank. It's an externally mounted device that's an ideal option for use with a container where you need to regulate liquid levels. When levels change, the float’s internal magnet triggers the reed switch and signals an alarm or kicks a pump into action. Typical uses for this switch include diesel generators, hydraulic oil and gearbox oil levels. It'll switch a maximum current of 600mA.

Features & Benefits

• Convenient external compression-seal fitting for simple and secure installation
• Wide operating temperature range of -20°C to +75°C for use tough industrial environments
• Lightweight and sturdy nylon body with high abrasion resistance
• 1m cable length for flexibility of installation

Can I easily reverse the operation of this switch float?

Yes, this float switch gives you flexibility with the design of your electrical circuit. It can be configured between NO (normally open) to operate on liquid rise and NC (normally closed) to operate on fall. To change its orientation, simply rotate it through 180º.
