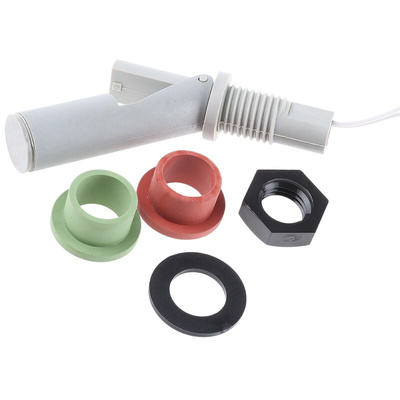

RSF76H050TV, Sensata / Cynergy3 Sensata / Cynergy 3 RSF70 Series Horizontal External Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NO/NC,

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Sensata Cynergy3 Horizontal External Float Switch, NO/NC, 1m Cable Length - RSF70 Series - RSF76H050TV

Use this horizontal float switch from Sensata Cynergy3 to monitor liquid levels in a tank. It consists of an actuator magnet that pivots as liquid rises or falls and a reed switch that closes or opens in response to changes in the magnetic field. The switch is designed for mounting on the outside of a tank, so no internal access is required. An ample cable length of 1m ensures a flexible electrical connection. This type of switch is commonly used in commercial dishwashers, vending machines and auxiliary tanks on vehicles.

Features & Benefits

• Wide operating temperature range of -10°C to +120°C for use in demanding conditions
• Made of PPS (polyphenylene sulfide) for chemical and corrosion resistance

How can I mount this switch?

To mount the switch, drill a 23mm hole in the tank and insert the switch horizontally from the outside.

Is this product susceptible to leaks?

This product protects your tank against leaks thanks to a gasket with a back nut for a tight seal. The gasket is made of Viton, a synthetic rubber that's resistant to chemicals and mould for reliable performance over a long lifespan.

RSF70 Series External Switch Datasheet

Information Sheet - Level Sensors & Switches

Installation Note - Float Switches

Selection Guide - Level Sensors & Switches
