RSF86Y050T, Sensata / Cynergy3 Sensata/Cynergy 3 RSF80 Series Horizontal External Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

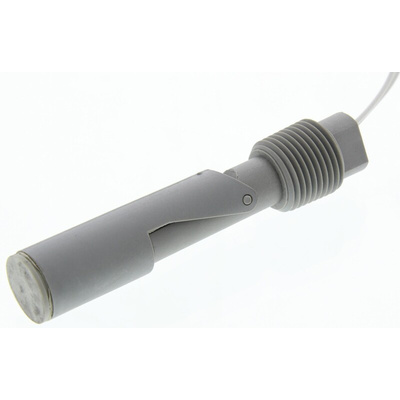

Sensata Cynergy3 Horizontal External Float Switch, 1m Cable, Polyphenylene Sulfide - RSF80 Series - RSF86Y050T

Monitor the liquid levels in your tank effectively with this float switch from Sensata's Cynergy3. This component lets you know exactly how much liquid is inside an industrial tank and alerts you when liquid levels are high or low. The switch floats on the surface of the liquid and turns your circuit on or off when the levels rise or fall. This helps you reliably prevent overflow when filling a tank and lets you know when it needs to be refilled. You'll often find a component like this used in applications involving evaporators or washing machines.

Features & Benefits

• Horizontal switch can mount on the sides of tanks with no top or bottom access

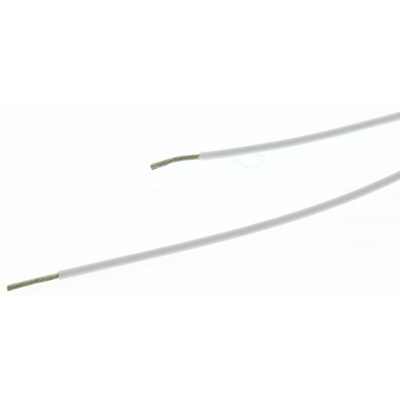

• Ample 1m cable length for flexible reach inside a large industrial tank
• Maximum current capacity of 600mA (milliamperes) keeps device at low power levels for energy efficiency
• Dense polyphenylene sulfide (PPS) body material provides effective electrical insulation for greater safety

Can this float switch withstand harsh industrial environments?

Yes, this float switch has a wide operating temperature range of -10°C to +100°C, making it suitable for use in hot or cold liquids and environments.
