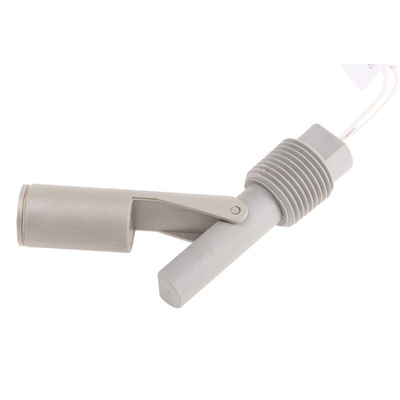

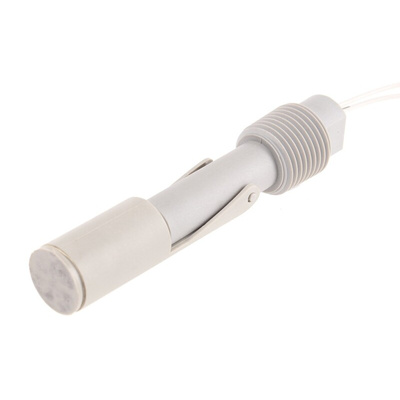

RSF86H050T, Sensata / Cynergy3 RSF80 Series Horizontal External Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

This float switch is designed for mounting through the outside wall of a tank using a inch NPT or inch BSP threaded hole or boss

PPS material
inch NPT or inch BSP external mounting
50cm ETFE flying leads
WRAS approved

Product Application Information

This PPS float switch is suitable for use in most organic and inorganic chemicals and most oils. Typical applications include diesel generators, hydraulic oil and gearbox oil levels.

RSF80 Series External Float Switch Datasheet
