RSF54H100R1/8, Sensata / Cynergy3 RSF50 Series Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, Поплавковый выключатель

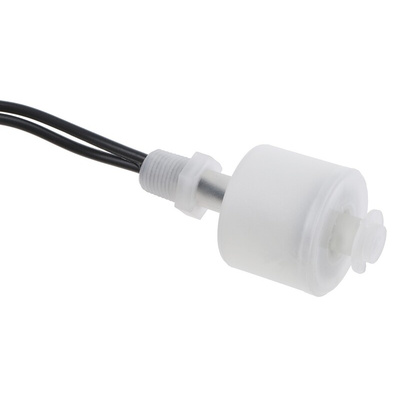

Sensata Cynergy3 Vertical Float Switch, NO/NC, 1m Cable - RSF50 Series - RSF54H100R1/8

Monitor liquid levels in a tank with this vertical float switch from Sensata Cynergy3. This simple NO/NC switching device uses a plastic float that sits on the liquid's surface and activates when the water level reaches the must-close limit of 15mm or the must-open limit of 26mm. You can fit it to either the bottom or top of a tank, so it's a good choice for situations when there's no side access. To reverse the switch action, all you have to do is invert the float. Connect this float switch to a pump, alarm or other actuator to streamline processes in applications such as printing systems and vending machines.

Features & Benefits

• Wide operating temperature range of -20°C to +100°C for use in demanding environments
• Polypropylene body is resistant to wear and impact for long-lasting performance

How do I install this float switch?

This float switch has a 1/8-inch NPT (National Pipe Thread) connection for simple and secure mounting. The 1m cable provides a flexible electrical connection. To ensure safe operation, install the switch with the cable entry and mounting thread above the highest liquid level.
