SSV66A24E34N183, Sensata / Cynergy3 SSV66A-34N Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V

SSV66 Series Stainless Steel Float Switch

The SSV66 series of float switches provide high, low or high and low level monitoring for 45 gallon drums, these float switches do not require access to the inside of the drum as they can be fitted from the outside of the drum through the 3/4" NPT bung hole.

Suitable for a 45 Gallon drum hi/lo level switching
External mount via 3/4" NPT
N/O or N/C switching action
Fits standard 3/4" NPT bung holes

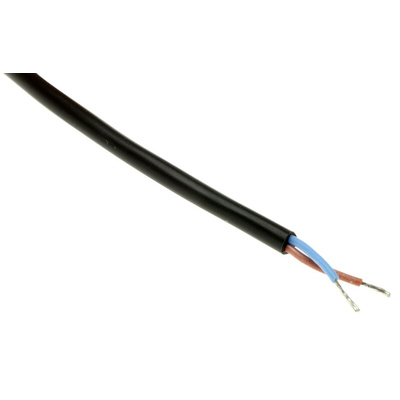

Flying lead or 4 pin M12 connection

Warning

The Cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the vertical type the mounting thread and cable entry must be above the highest level of the liquid.

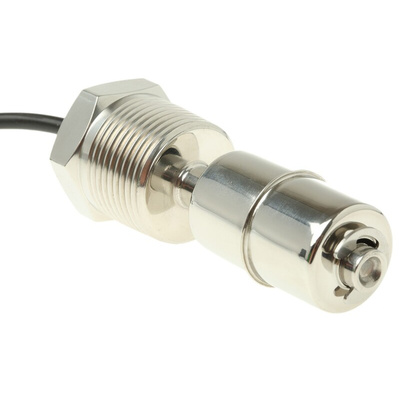

Sensata Cynergy3 Vertical Float Switch, 30 Bar, 1m Cable - SSV66A-34NSeries - SSV66A24E34N183

Use this vertical float switch from Sensata Cynergy3 to reliably determine the fluid levels in your 45-gallon tanks. It has flexible installation options that allow you to fit the component to the outside of your container through a 3/4-inch NPT bung hole or via a 3/4-inch NPT boss. You can change the switch action by removing and inverting the float for versatile use. This switch is ideal for fluid control in chemical processing plants and water management facilities.

Features & Benefits

• Stainless steel body material is resistant to corrosion, impact and wear for long-lasting performance
• Wide operating temperature range between 0°C and +120°C for use in demanding environments
• Maximum operating pressure of 30 bar for use in heavy-duty applications
• Maximum switching current of 500mA for energy efficiency

At what liquid level is the switch triggered?

The switch is triggered when liquid levels in your tank reach 24mm from the bottom of the mounting thread. This makes it suitable for monitoring high liquid levels to ensure your tank doesn't overflow.

SSV66A-34N Series Drum Level Switch Datasheet
