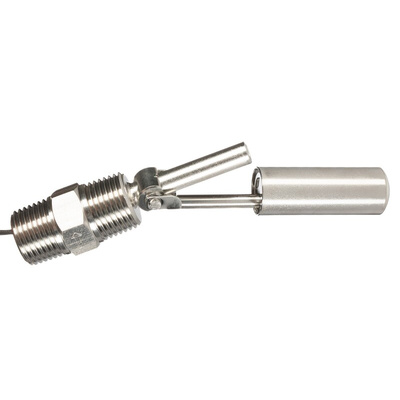

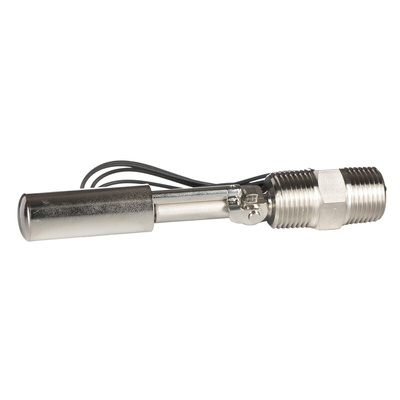

SSH66XU12N100, Sensata / Cynergy3 Cynergy3 SSH66XU Series Horizontal Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max

SSH66 Series Horizontal Steel Float Switches

304 grade stainless steel construction, ideally suited for use in aggressive environments
Consists of reed switch and pivoted actuator magnet
High temperature operation of up to 120°C
0.1 / 1 m XLPE cable
0.75 mn SG of liquid
User configurable N/O or N/C operation by rotating through 180°

Sensata Cynergy3 Float Switch, 50VA Maximum Switching Power, 1m Cable Length - SSH66XU Series - SSH66XU12N100

Use this horizontal float switch from Sensata Cynergy3 to manage liquid levels in your tank. It features a 1m cable for a flexible electrical connection. Thanks to its 1/2-inch NPT mounting thread, it's easy to install. For versatility, you can mount it on either the inside or outside of your container to suit your setup. It has a maximum switching voltage of 300V AC/DC, making it suitable for use in high-power systems. You'll find this type of switch used in applications such as chemical engineering and food processing.

Features & Benefits

• Stainless steel material is resistant to corrosion and wear
• Wide operating temperature range between 0°C and +120°C for use in demanding conditions
• XLPE cable sheath for resistance to moisture, wear and heat
• Maximum operating pressure of 10 bar for use in high-pressure applications

How can I change the switch action from NO to NC?

You can easily reverse the switch action from NO to NC by mounting the device so that the float mechanism moves up rather than down.
