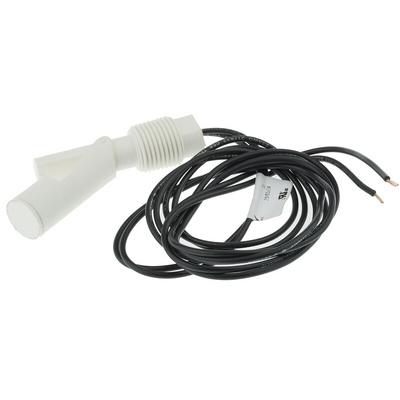

RSF88Y100R, Sensata / Cynergy3 RSF80 Series Horizontal External Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max,

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Sensata Cynergy3 Horizontal External Float Switch, NO/NC, Polypropylene - RSF80 Series - RSF88Y100R

If you need to measure, monitor or respond to liquid levels in your tanks, this Sensata Cynergy3 horizontal float switch is a reliable solution. It consists of a pivoting actuator with a magnet and a reed switch sensor that detects changes in magnetic fields. The actuator moves as the liquid level rises and falls, shifting the magnet and telling the sensor to open or close the switch. A switch like this one is commonly found in vending machines, evaporator units and commercial washing machines.

Features & Benefits

• Designed for either NO (normally open) or NC (normally closed) operation for versatility
• Made of tough PP (polypropylene) for durability and impact resistance

Can I use this switch to monitor both cold and hot liquids?

Yes, thanks to its wide operating temperature range of -20°C to +100°C, it's suitable for monitoring both cold and hot liquids.

How do I mount this switch?

This switch is designed for external mounting, so there's no need to access the inside of the tank. It uses a 1/2-inch NPT (National Pipe Thread) connection for secure installation.
