UF08B100, Cynergy3 UF Series Sensor/Switch without Indicator Flow Meter, 0.4 L/min → 8 L/min

Cynergy3 Flow Meter

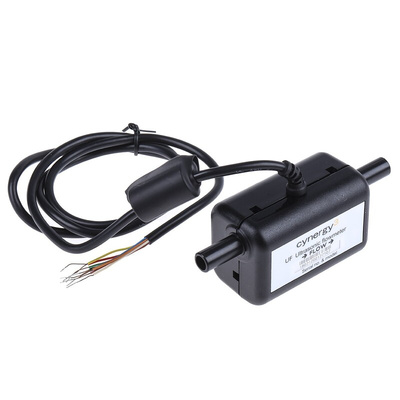

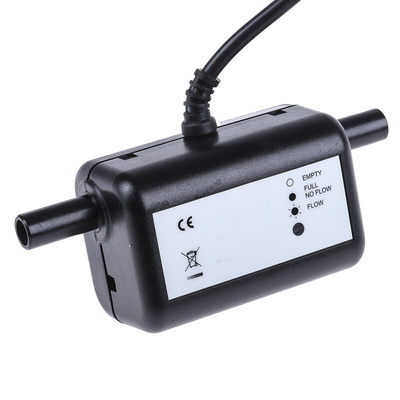

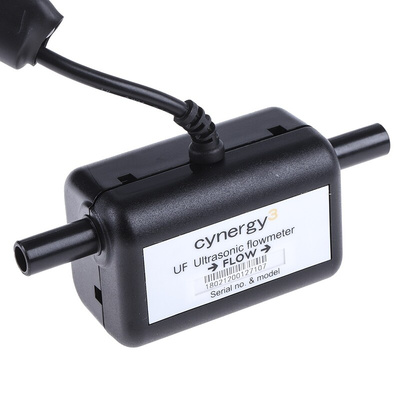

The Cynergy3 UF series ultrasonic liquid flowmeter sensor measures a flow rate of 0.4L/min to 8L/min. This sensor has non-invasive sensor technology. This device offers high accuracy, non-invasive, flow measurement device at a fraction of the cost of other current non-invasive systems. The flow path is designed to minimize pressure drop and, having no moving parts within, will not clog or jam. The sensor also allows contaminants to pass through without affecting its performance. The sensor is supplied with a pulse and analogue outputs selectable by connection wires.

Features and Benefits

Ultrasonic transit time in-line flow cell
Automatic viscosity and temperature compensation
Push-fit connection, compatible with john guest speed fit range
Connection is 8 core, PVC sheathed
Pipe diameter is 10mm
It is available in ABS material
Supply voltage rating ranges between 8VDC and 24VDC
Connection type is 3/8 BSP
Maximum operating pressure is 10bar
Operating temperature rating ranges between -10°C and 85°C

Certifications

ISO 9001
IP66 rated
