Tektronix TPP0200 Oscilloscope Probe, Probe Type: Passive 200MHz 300V 1:10, Щупы для осциллографа

Tektronix Oscilloscope Probes

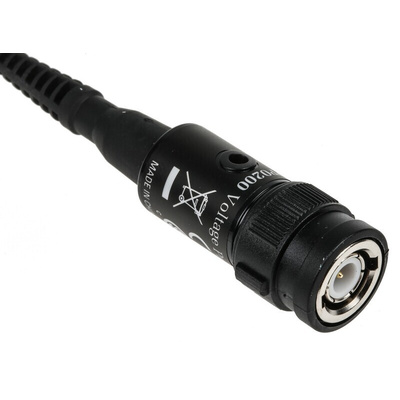

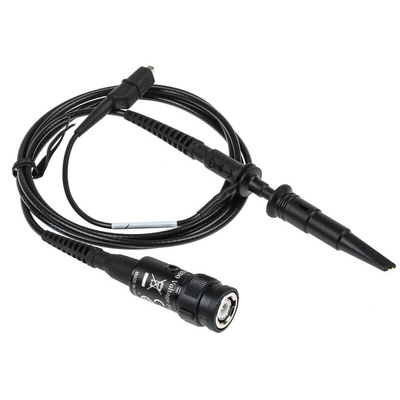

The Tektronix passive voltage oscilloscope probe is for use on BNC oscilloscopes with 1Mohm/13pF input. It has an attenuation of 10X with 10Mohm input resistance.
Supplied with:

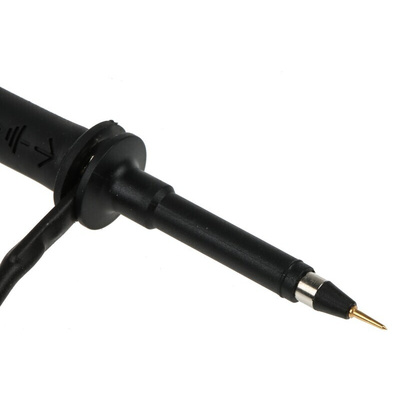

Retractable hook tip

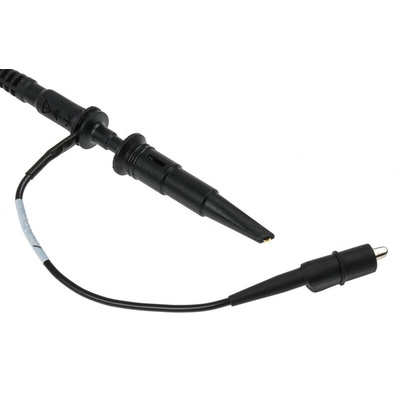

Ground spring, ground lead with alligator clip
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.

Features and Benefits

Bandwidth is DC to 200MHz
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Cable length is 1.3m
Maximum common-mode input voltage is 300KV
Maximum Input voltage is 300 VRMS CAT II
Wide compensation range is (8pF-18pF)

Applications

Relative low frequency measurements
Low frequency computer and telecom measurements
Power supplies
Low frequency amplifiers

Certifications

UL61010-031 approved
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT II 300V
