Tektronix TPP0201 Oscilloscope Probe, Probe Type: Passive 200MHz 300V 1:10, Щупы для осциллографа

Tektronix Oscilloscope Probes

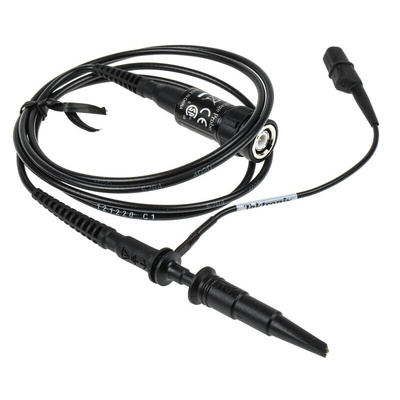

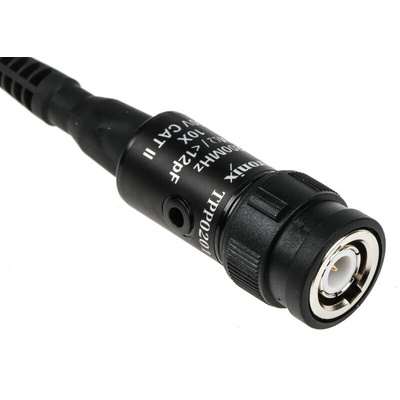

The Tektronix passive voltage oscilloscope probe is for use on BNC oscilloscopes with 1Mohm/13pF input. It has an attenuation of 10X with 10Mohm input resistance.
Supplied with:
Retractable hook tip
Ground spring

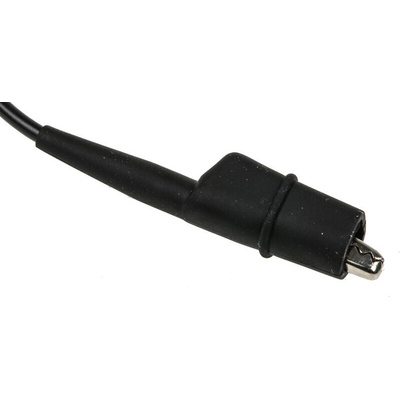

Ground lead with alligator clip
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.

Features and Benefits

Bandwidth is DC to 200MHz
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Length is 1.3m
Maximum common-mode input voltage is 300KV
Maximum Input voltage is 300 VRMS CAT II
Wide compensation ranges between 15pF and 25pF)

Applications

Relative low frequency measurements
Low frequency computer and telecom measurements
Power supplies
Low frequency amplifiers

Certifications

UL61010-031 approved
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT I 400 VAC
CAT II 300 V
CAT II 300 VAC

Passive 10X Voltage Probe TPP0200, TPP0201 Data Sheet
