Cliff Electronics Test Plug Cable Entry 4 → 7mm, Rated At 5A, 240 V ac, with 1.5m Cord, Испытательный блок

Cliff Electronics Main Test Block

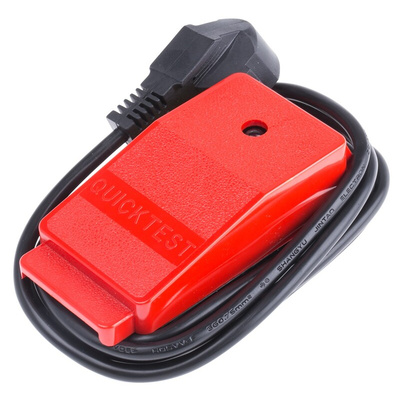

The Cliff Electronics mains test block has a 5A fuse with a 1.5m cable and EU plug. This connector is the quick test QT1 made from a tough impact-resistant, flame-retardant plastic. When the lid is open, the wires of the plugless lead can be inserted into the insulated clips. The insulated clips are colour coded for easy identification. Once the lid is closed, current passes to the equipment being tested. A neon light illuminates when the connector is live and ready to use.
Warning:
Customers are advised to refer to the Electricity at Work Regulations 1989, with particular attention to regulation 10 (connections) before using these products. These test connectors are not suitable for making mains connections to equipment in domestic use as defined in the Low Voltage Electrical Equipment (Safety) Regulations, 1989.

Features and Benefits

The supply voltage rating is 24VDC
Connection keys are electrically isolated by opening the lid
Colour coded cable clips for easy identification
Power neon indicator
Double pole switching via a lid
Colour coded cable clips for ease of connection

Applications

Laboratories
Test beds
Service areas

Datasheet_7260085
