RS PRO Stainless Steel Piano Hinge, 50mm x 50mm x 2mm, Петля

RS PRO Stainless Steel Piano-style Hinge, 50 mm x 50 mm x 2 mm

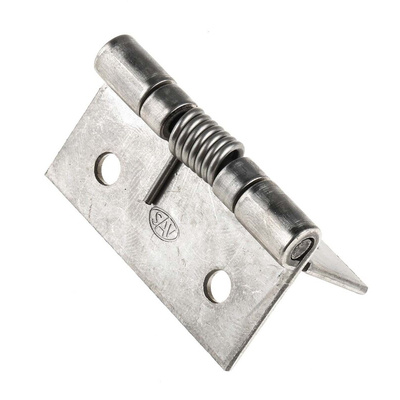

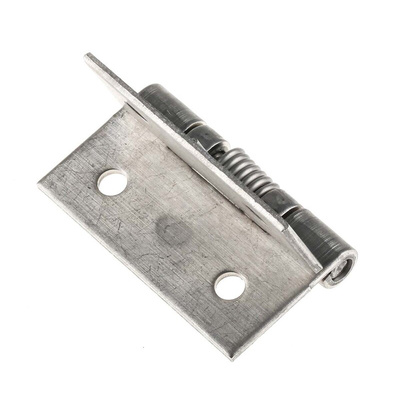

These stainless steel piano-style hinges use the tension of their springs to automatically close doors. They're part of our stringently tested RS PRO series.

These hinges are 2 mm thick and made from grade 304 stainless steel – an exceptionally tough material with good corrosion resistance. The springs are also made from stainless steel. This improves durability and minimises the need for maintenance. As stainless steel has a high yield strength, these compact 50 x 50 mm hinges can bear heavy weights. You'll find four pre-drilled holes of 5.2 mm for easy alignment and mounting.

Concentrations of hazardous substances in these are below 0.1%, so they comply with EU directives. They also meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards regarding electrostatic discharge. Their self-closing action makes them suitable for security purposes or soundproofed rooms, such as recording studios or private meeting rooms.

Features and Benefits

• Piano-style hinges made from stainless steel
• Spring closed
• Length of 50 mm
• Width of 50 mm
• Material thickness of 2 mm
• 5.2 mm diameter fixing holes
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
