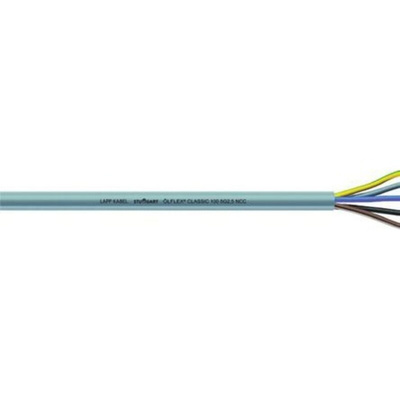

00100034, Lapp ÖLFLEX CLASSIC 100 Control Cable, 5 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG, Кабель

Ölflex Classic 100

ÖLFLEX® Classic 100 cables are a connecting and control cable for flexible use and fixed installation for medium mechanical load.

ÖLFLEX® Classic 100 cables are used as supply and interconnecting cable for controlling machine tools, production lines, control equipment on conveyors, and are also used in computer units. They are suitable for use when freely moved without forced guidance and tensile stress.

They may only be installed outdoors with UV protection and in observation of their operating temperature range. At room temperature the cable is generally resistant against, acids, caustic solutions and certain oils.

Features and Benefits

• Chemical Resistance
• Flame retardant: in accordance to IEC 60 332.1 resp. VDE 0482 part 332-2-1
• Design: in accordance to HD 21.13S1 that is VDE 0281-13
• Minimum bending radius: flexible use 15 x cable diameter, fixed installation 4 x cable diameter
• Tests: in accordance to IEC 60 811 resp. VDE 0472 and VDE 0473
• Operating Temperature for flexible use -5 up to +70°C
• Operating Temperature for fixed installation -40 up to +80°C

Applications

ÖLFLEX® Classic 100 cables can be used in dry, damp and wet rooms, and their resistance to oil and chemicals makes them suitable for specialist environments. As such, they have a wide range of applications, and can often be found in;

• Plant and Engineering
• HVAC Systems
• Power Stations

Their torsion resistance also makes them suitable for torsional applications such as the loop in wind turbine generators.

Accessories

Lapp have a range of versatile cable glands for use in cable installation and management, such as the Skintop Click series of easy-fit glands:

• 560-678 is an M12 Skintop Click Cable Gland for 3.5-7mm Cable Diameters
• 475-091 is an M16 Skintop Click Cable Gland for 4.5-10mm Cable Diameters
• 475-136 is an M20 Skintop Click Cable Gland for 7-13mm Cable Diameters
• 475-132 is an M25 Skintop Click Cable Gland for 9-17mm Cable Diameters
• 560-688 is an M32 Skintop Click Cable Gland for 11-21mm Cable Diameters

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 9A Current Rating, 6.2mm OD - ÖLFLEX CLASSIC Series - 00100034

This control cable from LAPP is a flexible choice for applications where wires need to be able to move freely. A non-wicking filler repels liquid away from the conductor, so you can rely on it, even in damp conditions. Five short-twisted copper cores provide a reliable electrical connection. This cable is unscreened, meaning it's ideal for low-frequency applications and areas free from EMI.

• Slim 20AWG cable size for further flexibility
• Flame-retardant insulator for workplace safety
• Wide operating temperature range between -40°C and +80°C for use in demanding conditions

Applications

• Plant engineering
• Construction equipment
• Power stations

Is this control cable suitable for use with heavy-duty applications?

Yes, the robust PVC sheathing protects the cores against cuts, abrasions and tears, so this cable can withstand the most demanding settings. As it resists oil and chemicals, you can use it with confidence in contaminated environments.
