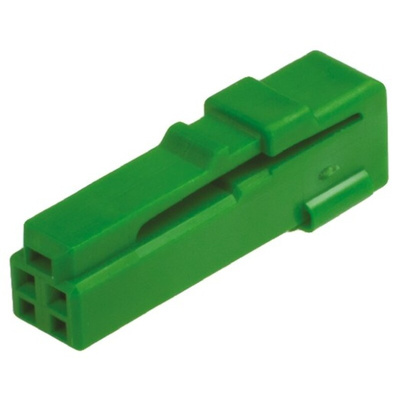

IL-AG9-2S-S3C1, JAE inline connector Cable Mount Socket, 3A

JAE IL-AG9 In-line Plugs and Sockets

These IL-AG9 wire to wire in-line plug and socket housings incorporate a hinge type double hooking mechanism which prevents incomplete terminal insertion and removal plus the pin housing can facilitate a nylon clip for attachment.

Note

For contacts for use in these IL-AG9 housings see stock number 690-9887 female or 690-9896 male.

JAE IL-AG9 Series Automotive Connectors

The JAE IL-AG9 Series is a range of compact relay connectors for use in the automotive industry.

This IL-AG9 series has a small number of contacts on a 2.5 mm pitch. Twisted mating, mis-mating and reverse insertion are prevented by the design of the housings. A mechanical lock method is used to withstand vibration and pulling.

IL-AG9 2 way socket inline Drawing
