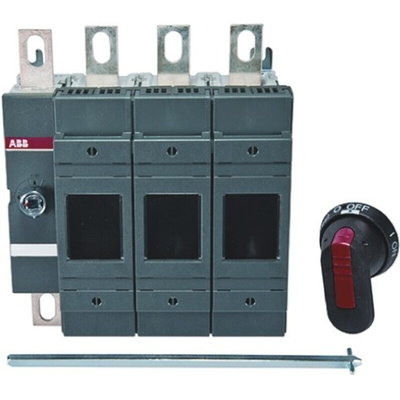

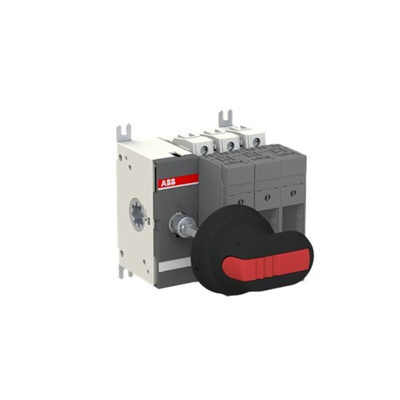

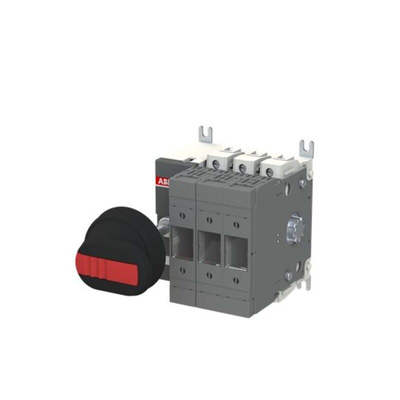

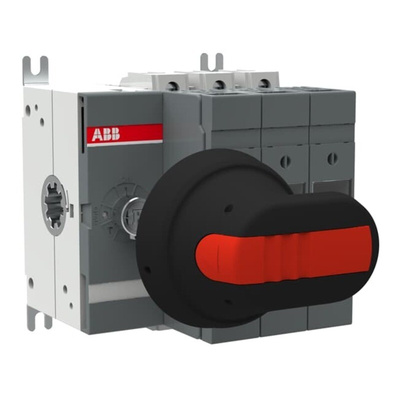

OS200B03P 1SCA022709R9330, ABB Fuse Switch Disconnector, 3 Pole, 200A Max Current

ABB Fuse Switch Disconnector, 1,000V Rated Insulation Voltage, British Standard Fuse System - OS200B Series - 1SCA022709R9330

Get the upper hand over power in your circuitry with this fuse switch disconnector from ABB. You can easily switch power on or off in up to three individual circuits, thanks to its three poles. The pistol-style handle has a thumb grip, so it's easy to handle, while a red indicator points you clearly to the ON and OFF positions. To improve user safety, you can't remove the fuse covers while the switch is set to its ON state. Straightforward DIN rail mounting lets you get set up in a jiffy.

Features & Benefits

• Compact dimensions of 130 (L) x 177 (W) x 199mm (H) to fit neatly into your setup
• 12kV impulse protection prevents hazardous overvoltages from damaging your equipment
• Industry-standard B1 and B2 fuse sizes are easy to source and replace
• 3.3kg weight minimises strain on your infrastructure
• 200A maximum current supports high-power industrial systems

Applications

• Industrial automation
• Factory power supplies
• Process and packaging facilities

Can I add auxiliary contacts to this unit?

Yes. This fuse switch disconnector is customisable with additional auxiliary contacts to manage more circuits in your system.

ABB OS Range

A fused switch disconnector provides a cost effective means of short circuit protection, together with circuit isolation. The choice of fuse rating determines the level of protection, the maximum value is determined by the fused switch disconnector. These items have been tested in accordance with EN 60947-3.

Switch Fuses OS and OSM Catalogue

Fuse Guide

LUL Certificate No. 2493

Datasheet - 1SCA022709R9330

Catalogue - Switch Fuses
