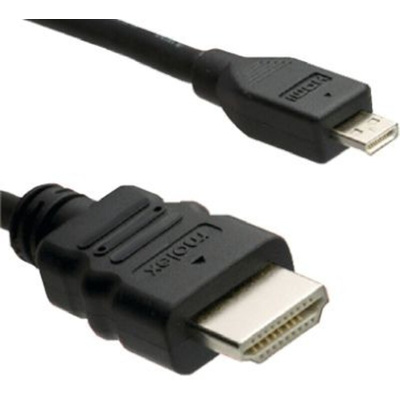

68786-0001, Molex Male HDMI to Male Micro HDMI Cable, 1m

HDMI Type D Micro Cable Assemblies

These HDMI Type D to Type A Micro Cable Assemblies mate with the Series 46765 HDMI Type D Micro,Connectors, see stock number 727-6311 typical.

Cable Impedance is 100 ohms ± 15%.
Propagation delay (max) 2.42 ns per cable

Approvals

EU, RoHS

Molex HDMI Type D Micro Connectors

The Molex HDMI Type D Micro connector meets all mechanical and electrical requirements of the HDMI 1.4 Specification and is only half the size of the current Type C (Mini) connector. These HDMI Type D Micro connectors offer significant space-saving and real estate advantages and is the industry’s only I/O solution that allows customers to surpass HD consumer demand. Despite its smaller size, the new HDMI Type D Micro connector delivers equivalent mechanical strength and electrical characteristics of its larger Type C predecessor.
