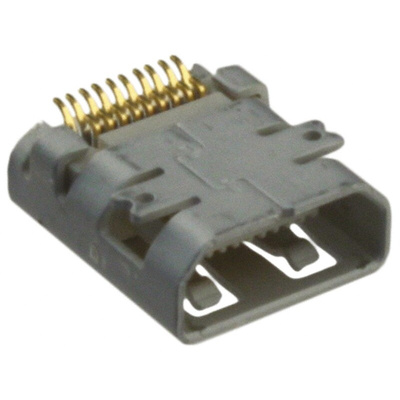

46765-0001, Molex Type D 19 Way Female Right Angle HDMI Connector 30 V, Разъем

HDMI Type D Micro Connectors

These HDMI Type D Micro receptacles meet the requirements of the HDMI 1.4 Specification.

Features include:
0.40mm (.016″) pitch dual-row
5,000 mating cycles
Friction lock on receptacle shell
Rear receptacle-shell-over-housing design
Receptacle terminal hold-down feature

Note

Full SMT, through hole and hybrid shell options available, see stock numbers 727-6311 , 727-6314 and 727-6318 respectively.

Molex HDMI Type D Micro Connectors

The Molex HDMI Type D Micro connector meets all mechanical and electrical requirements of the HDMI 1.4 Specification and is only half the size of the current Type C (Mini) connector. These HDMI Type D Micro connectors offer significant space-saving and real estate advantages and is the industry’s only I/O solution that allows customers to surpass HD consumer demand. Despite its smaller size, the new HDMI Type D Micro connector delivers equivalent mechanical strength and electrical characteristics of its larger Type C predecessor.
