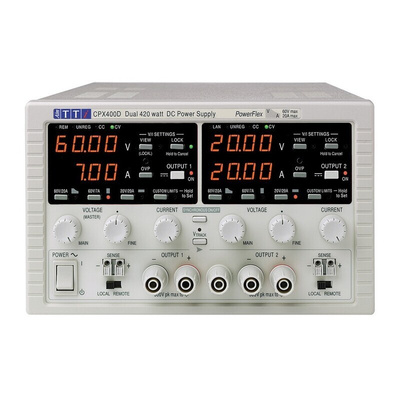

CPX400D, Aim-TTi CPX Series Digital Bench Power Supply, 0 → 60V, 0 → 20A, 2-Output, 840W - UKAS Calibrated, Блок питания

Dual Output, 60V, 20A, 840 Watts - PowerFlex CPX400D & CPX400DP

The CPX400D (RS 7312842) and CPX400DP (RS 7072857) are dual output PSUs using PowerFlex regulation which enables higher currents to be generated at lower voltages within a power envelope. They feature smart analogue controls with settings lock, and isolated voltage tracking for easy series or parallel wiring. The CPX400DP includes a full range of digital remote control interfaces and duplicate output terminals at the rear.
For an optional GPIB module see stock number 144-5481.

Features and Benefits:

Dual isolated outputs, independent or tracking
PowerFlex regulation with 840 watts of total power

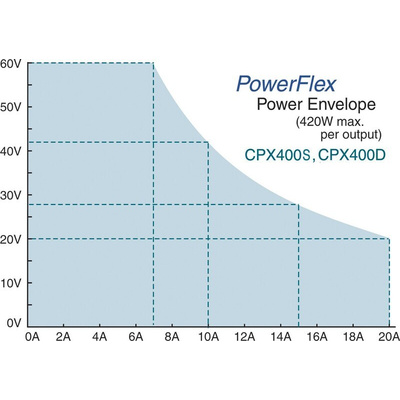

Up to 60V and up to 20A within a 420W power envelope on each output
Isolated tracking provides up to 120V in series or up to 40A in parallel
True analogue controls with digital enhancements
S-Lock function locks voltage and current settings at the touch of a button
Range control buttons offers fixed range or PowerFlex operation
Variable over-voltage protection (OVP) and over-current protection (OCP)
Synchronous or independent switching of the outputs
Compact 3U half-rack casing for bench or rack use
Duplicate output and sense terminals at rear (CPX400DP only)
Full range of bus interfaces, RS232, USB, LAN (LXI compliant)

Note

The higher value CPX400DP includes GPIB, RS-232, USB and LAN interfaces with LXI class C compliance

Standards

EN 61010-1, EN61326

Aim-Tti Programmable DC Bench Power Supply

The Aim-TTi dual 420W rated programmable DC bench power supply with UKAS calibration has 2 outputs. The output voltage rating ranges between 0V and 60V and the current rating ranges between 0A and 20A. The values of the adjustable outputs are displayed on a large 4-digit fixed resolution meter. The power supply offers a clean power, excellent regulation, and fast transient response.
Note:
The higher value CPX400DP includes GPIB, RS-232, USB and LAN interfaces with LXI Class C compliance.
Inclusions:
User manual, mains lead, a CD containing IVI driver, and other software.

Features and Benefits

Compact 1/2 rack 3U case for a bench use or a rack mounting
Constant voltage or constant current operation
Independent outputs or isolated voltage tracking
Low output noise and a good transient response
Outputs can be wired in a series or parallel for 120V or 20A
PowerFlex design gives a variable voltage and current combinations
PowerFlex or fixed-range operation plus custom limits
Safety binding-post terminals
Selectable remote sensing
True analogue controls with a digital settings locking feature
Variable OVP trips

Applications

Production testing
QA verifications
R&D design verification

Certifications

EN 61010
EN61326

CPX Series Data Sheet
