AC002014, Microchip 11.7W Plug-In AC/DC Adapter 9V dc Output, 1.3A Output

9V Wall Mount Power Supply

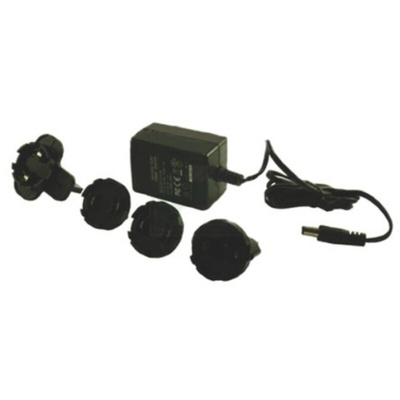

Microchips AC002014 is a brilliant universal power adapter. This unit ranges from 110V up to 220V and is supplied with Asia, European and North American plug heads. The AC002014's features a 5mm output jack and is centre positive. The maximum output current is 1.3A.

The modular adapters are easy to use. Simply place a power adapter into the main unit and twist until it audibly clicks.

Features and benefits:

• 110V – 220V range


• Easy modular system to accompany any region


• 5mm jack with a centre-line pitch


• Built with quality in mind


• 1.5m Cable

Applications:

This power adapter has been designed to be used with Microchips development/evaluation boards. However, it is not limited to this use.

• DM240002 – 125-3449


• DM240001


• DV003001


• DV007003

This power supply can be used with the MPLAB ICD 2, Explorer 16 (DM240001), PICSTART Plus (DV003001), the PRO MATE II (DV007003), and many of our other demo boards. It replaces our standard 9V power supply (AC162039).
