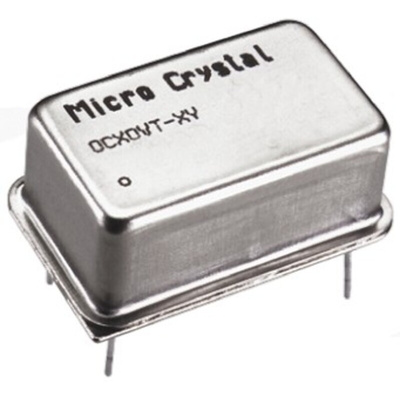

Micro Crystal 10MHz OCXO Oscillator, PDIP ±0.2ppm HCMOSOCXOV-AV5-10.000

Micro Crystal OCXOV Crystal Oscillators

From Micro Crystal, the OXCO series of oven controlled quartz crystal oscillators offer a high performance and accurate solution. Constructed in an oversize enclosure, the crystal and other temperature sensitive components are placed with a Temperature Sensor, heating element and the oven controlled circuity. The construction ensures that external temperature variations do not affect the crystal. Maintaining a constant temperature ensures a high performance and frequency accuracy.

Features & Benefits

Large temperature range
<±0.5 ppm ageing over the first year
<±3 ppm ageing over ten years
Low power consumption
High vibration resistance
High shock resistance
Fast warm up

Product Application Information

Recommended applications for this DIL 14 package range from digital switching and telecom transmission, airborne equipment and battery operated systems to radio transceivers. Other suitable applications include instrumentation, SONET, SDH, WIMAX, FDM/36 and DWDM.

Brand Information

Micro Crystal are part of Swatch Group Inc and manufacture real-time clocks, miniature tuning fork quartz crystals and OCXOs for the electronics industries. Their products have applications in computers, mobile phones, watches, industrial controls, medical implantable devices and consumer products. This leading manufacturer offers global, in-depth, support at all stages from design-in to mass production.

The OCXOV-AV5-10.000 crystal oscillator provides an HC-MOS output and has a frequency of 10000 MHz.

Oven Controlled Crystal Oscillators (OCXO)
